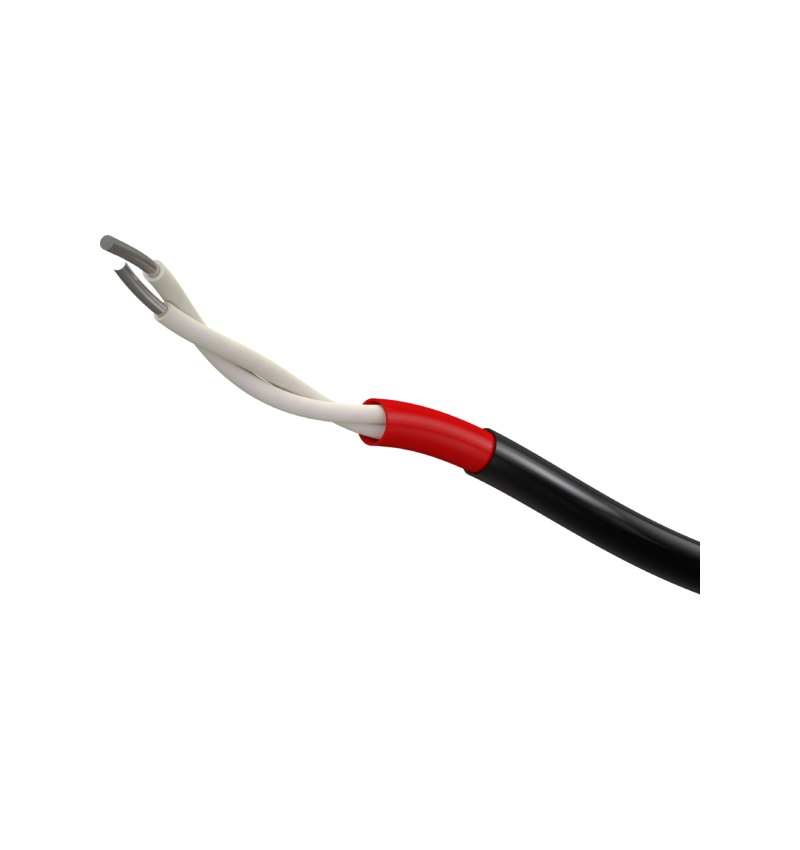

Signaline Fixed Temperature Linear Heat Detector (Signaline FT) detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated. Signaline FT is available in four different temperature settings and two outer cover options making the Signaline FT suitable for use in a very wide range of applications
- Model Signaline FT-68-R
- Alarm temperature 68°C (155°F)
- Max ambient temp. 45°C (113°F)
- Conductor resistance 0.1Ω/M or 0.029Ω/FT @20°C
- Max voltage 42Vdc or 30Vac
- Dielectric withstand (UL) 500Vdc
- Tensile strength 1700 N/mm²
- Minimum bend radius 75mm
- Overall diameter 4.5mm
- Weight 16kg/500M
- Outer sheath material Chemical resistant nylon
- Colour Black
- Approvals UL, cUL
Piegāde mājās (ieteicams)
Pēc preču nodošanas kurjeram informēsim Jūs pa e-pastu. pa pastu
| līdz 5 kg | 3,99 € | līdz 10 kg | 5,00 € |
| līdz 30 kg | 9,00 € | līdz 75 kg | 15,00 € |
| līdz 200 kg | 70,00 € | līdz 1000 kg | 200,00 € |
Signaline Fixed Temperature Linear Heat Detector (Signaline FT) detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated. Signaline FT is available in four different temperature settings and two outer cover options making the Signaline FT suitable for use in a very wide range of applications
- Model Signaline FT-68-R
- Alarm temperature 68°C (155°F)
- Max ambient temp. 45°C (113°F)
- Conductor resistance 0.1Ω/M or 0.029Ω/FT @20°C
- Max voltage 42Vdc or 30Vac
- Dielectric withstand (UL) 500Vdc
- Tensile strength 1700 N/mm²
- Minimum bend radius 75mm
- Overall diameter 4.5mm
- Weight 16kg/500M
- Outer sheath material Chemical resistant nylon
- Colour Black
- Approvals UL, cUL
Piegāde mājās (ieteicams)
Pēc preču nodošanas kurjeram informēsim Jūs pa e-pastu. pa pastu
| līdz 5 kg | 3,99 € | līdz 10 kg | 5,00 € |
| līdz 30 kg | 9,00 € | līdz 75 kg | 15,00 € |
| līdz 200 kg | 70,00 € | līdz 1000 kg | 200,00 € |
Alternatīvas
FT-88-R Signaline 88°C fiksētas temperatūras kabelis ar neilona pārklājumu, agresīviem apstākļiem
FT-88-EN Signalīna fiksēts 88°C temperatūras kabelis, LSZH, UV un ķīmiski izturīgs, EN54-28
