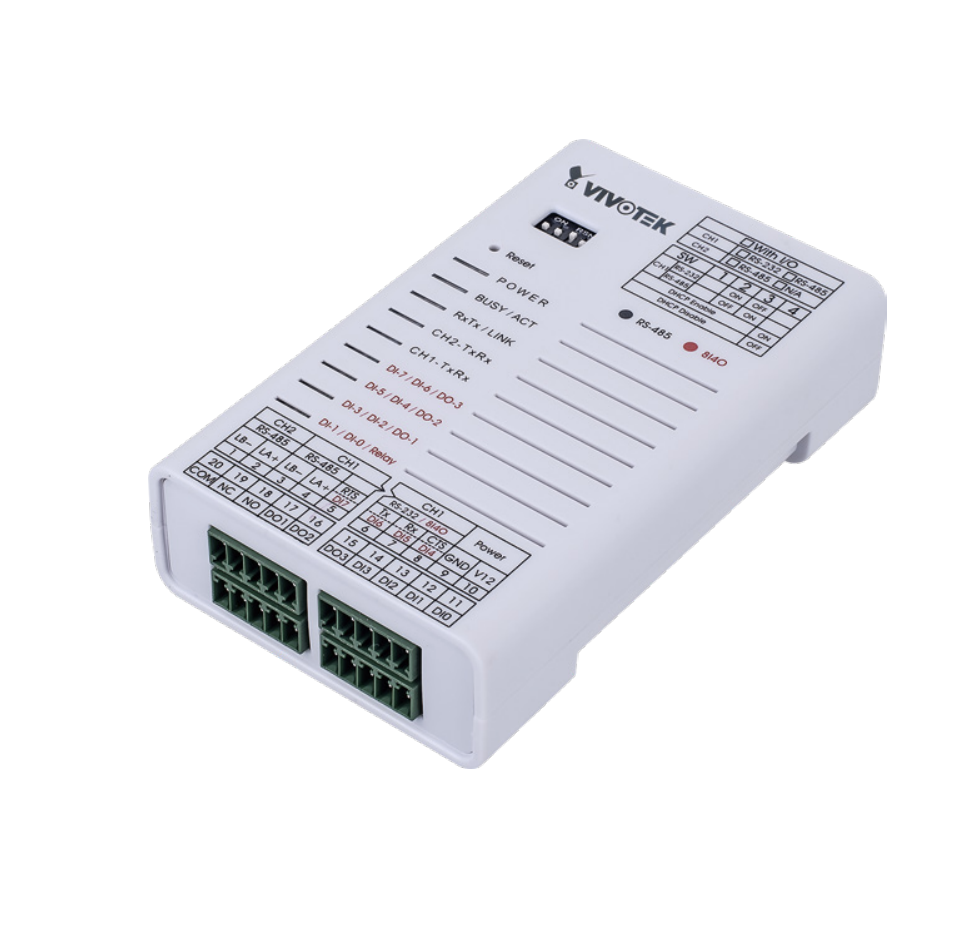

Vivotek AO-20W Wiegand Converter
- Easy Integration into any Access Control System
- Use in Combination with the ANPR Access Service
- Supports Ethernet to Wiegand Output Conversion
- Supports 26-bit and 34-bit Wiegand Format

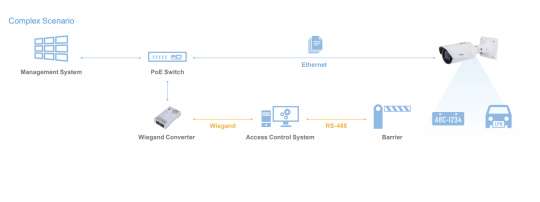

The Wiegand protocol is commonly used in traditional access control systems, which grant access to drivers based on their badge with valid Wiegand ID numbers. In order to easily upgrade existing access control systems with the power of VIVOTEK LPR cameras, VIVOTEK’s onboard ANPR software can link license plates to specific Wiegand ID numbers (eg. driver’s badge). In the meantime, the VIVOTEK Wiegand converter can convert the Ethernet signal to Wiegand output signal in order to work with the existing access control system.
Moreover, with VIVOTEK’s ANPR software, you can also easily configure a mapping list to link plate numbers to specific ID numbers and set specific actions to individual groups.
| Manufacturer | VIVOTEK |
| Power | 9-24V DC |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
Vivotek AO-20W Wiegand Converter
- Easy Integration into any Access Control System
- Use in Combination with the ANPR Access Service
- Supports Ethernet to Wiegand Output Conversion
- Supports 26-bit and 34-bit Wiegand Format
The Wiegand protocol is commonly used in traditional access control systems, which grant access to drivers based on their badge with valid Wiegand ID numbers. In order to easily upgrade existing access control systems with the power of VIVOTEK LPR cameras, VIVOTEK’s onboard ANPR software can link license plates to specific Wiegand ID numbers (eg. driver’s badge). In the meantime, the VIVOTEK Wiegand converter can convert the Ethernet signal to Wiegand output signal in order to work with the existing access control system.
Moreover, with VIVOTEK’s ANPR software, you can also easily configure a mapping list to link plate numbers to specific ID numbers and set specific actions to individual groups.
| Manufacturer | VIVOTEK |
| Power | 9-24V DC |
