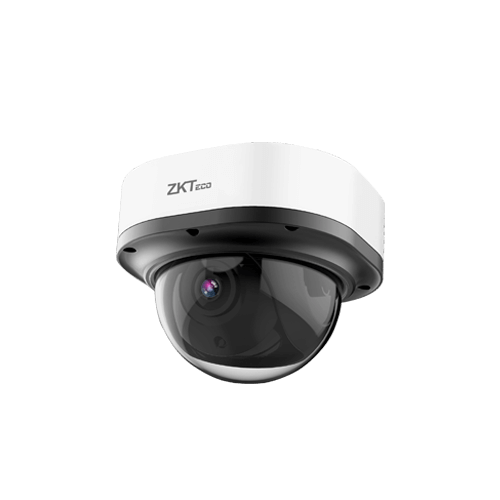

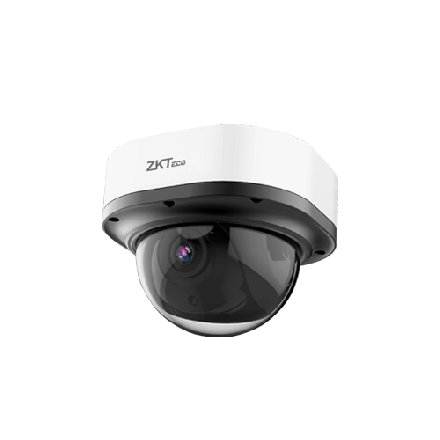

ZKTeco’s high-performance camera with embedded License Plate Recognition application. The license plate recognition algorithm is executed inside the camera avoiding the use of computers in access control, tolling and weighing scenarios. The License Plate Recognition engine can identify license plates from over 80 countries around the world. ZK-LPR Car ID is next step in ZKTeco’s access control system technology for an efficient and simple vehicle access management, delivering, faster & easier set-up and allowing customers to achieve high performance with lower installation, maintenance and off-site programming costs.
- Image Sensor: 1/2.8” Sony STAVIS CMOS
- Effective Pixels: 1920 x 1080
- Min. Illumination: Color: [email protected] (AGC ON)
- Flash: 512 Mb
- IR LED No.: 2 (Smart IR)
- IR Distance: 50m
- S/N Ratio: > 52dB
- Lens Type: Motorized
- Mount Type: Board-in
- Focal Length: 3.35mm ~ 10.05mm
- Aperture: F1.7 ~ F3.0
- FOV: 38° ~ 107°
- Optical Zoom: 3X
- Compression: H.265+ / H.265 / H.264
- Resolution: 1080P (1920 * 1080) / 1.3MP (1280 * 960) / 720P (1280 * 720) Q720P (640 * 360) / CIF (352 * 288)
- Bitrate Control: CBR / VBR
- Bitrate: H.265+: 1536Kbps - 7Mbps / H.265: 1536Kbps - 7Mbps / H.264: 1792Kbps - 9Mbps
- Multi-Streaming: Main Stream: 1080P@25fps / Sub Stream: Q720P@25fps
- Motion Detection: Support
- Digital Zoom: Support
- Audio Compression: G7.11u
- Privacy Mask: 5 areas
- WDR: TWDR
- Day / Night: Support
- White Balance: Support
- Defog: Support
- Noise Reduction: 3D DNR
- Mirror / Flip: Support
- Corridor Mode: Support
- HLC: Support
- BLC: N/A
- ROI: 4 areas
- Anti-flicker:Support
- Intelligent Video: Face Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Shelter / Scene change / Audio Detection / Fire Detection / VQD
- Protocol:TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
- Interoperability: ONVIF, SDK, API
- Max. Online Users: 5
- Web Browser: IE / Firefox / Chrome / Safari
- Management Software (VMS): AntarVis 2.0
- Operation System: Windows
- Mobile Application: Antar View Pro
- P2P Cloud Service: Support
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Audio I/O: 1 in / 1 out
- Alarm I/O: 2 in / 1 out
- RS485: Support
- Reset Button: Support
- Micro-SD Slot: 64GB MicroSD card included
- ANR: Support
- USB: N/A
- Power Supply: PoE (IEEE802.3af ), DC 12V±10%
- Power Consumption: < 3W
- Ingress Protection: IP 67
- Dimensions: 247(L) * 85(W) * 76(H)mm
- \Working Humidity: 10% ~ 90%
- Working Temperature: -30°C ~ +60 °C
- Net Weight: 0.50 kg
- Gross Weight: 0.64 kg
| Manufacturer | ZKTeco |
| IP standard | IP67 |
