Video surveillance cameras

IP video surveillance

IP cameras

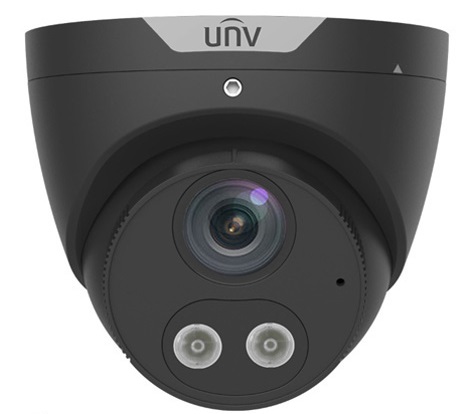

IPC3618SB-ADF28KMC-I0 BLACK TRI-GUARD 8Mpix DOME IP camera, 2.8mm (106,7°), IR up to 30m, PoE, IP67

Add to wish list

Print this page

Price:	268,00 €
Product number:	0-0411-086-000790
Manufacturer	UNIVIEW UNIVIEW
Category	IP cameras

This item is not on stock and has to be re-ordered.

Quantity:

Quantity:

- +

Camera
Sensor	1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
WDR	120dB
S/N	>56dB
Lens
Lens	[email protected]
Iris	Fixed
Field of View (H)	106.7°
Field of View (V)	57.1°
Field of View (D)	115.7°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	86.9		34.8	17.4		8.7
Illuminator
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8MP (38402160), Max 20fps; 5MP (30721728), Max 30fps; 4MP (25601440), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 1080P (19201080), Max 30fps;720P (1280720), Max 30fps; 640360,Max 30fps; D1 (720576), Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Triple streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog
Intelligent
Smart intrusion prevention	Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis	People counting, support people flow counting and crowd density monitoring
Events
Basic Detection	Motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression	G.711
Audio Bitrate	64 Kbps
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
RS485	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certifications
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 10.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (L × W × H)	Φ111 x 95mm (Φ4.4” x 3.7”)
Weight	0.48kg (1.058lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV

Manufacturer	UNIVIEW
Spec. functions	Tri-Guard
Certificates	NDAA
IP standard	IP67
Resolution	8Mpix
Case	Dome
Conectivity	LAN
Illumination	30m
Audio	Microphone / Speaker
Color	Black
Card slot	256Gb
Power	12V DC / PoE 802.3af
Lens	2,8mm

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

up to 5 kg	3,99 €	up to 10 kg	5,00 €
up to 30 kg	9,00 €	up to 75 kg	15,00 €
up to 200 kg	70,00 €	up to 1000 kg	200,00 €

Camera
Sensor	1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
WDR	120dB
S/N	>56dB
Lens
Lens	[email protected]
Iris	Fixed
Field of View (H)	106.7°
Field of View (V)	57.1°
Field of View (D)	115.7°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	86.9		34.8	17.4		8.7
Illuminator
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8MP (38402160), Max 20fps; 5MP (30721728), Max 30fps; 4MP (25601440), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 1080P (19201080), Max 30fps;720P (1280720), Max 30fps; 640360,Max 30fps; D1 (720576), Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Triple streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog
Intelligent
Smart intrusion prevention	Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis	People counting, support people flow counting and crowd density monitoring
Events
Basic Detection	Motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression	G.711
Audio Bitrate	64 Kbps
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
RS485	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certifications
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 10.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (L × W × H)	Φ111 x 95mm (Φ4.4” x 3.7”)
Weight	0.48kg (1.058lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV

Manufacturer	UNIVIEW
Spec. functions	Tri-Guard
Certificates	NDAA
IP standard	IP67
Resolution	8Mpix
Case	Dome
Conectivity	LAN
Illumination	30m
Audio	Microphone / Speaker
Color	Black
Card slot	256Gb
Power	12V DC / PoE 802.3af
Lens	2,8mm

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

up to 5 kg	3,99 €	up to 10 kg	5,00 €
up to 30 kg	9,00 €	up to 75 kg	15,00 €
up to 200 kg	70,00 €	up to 1000 kg	200,00 €

Accessories

17,00 €

TR-JB03-G-IN BLACK base for DOME IPC32x S/SS/SB/E/L/LB, IPC31x, IPC361x SS/SB series cameras

0-0481-086-000032

2,60 €

TR-A01-IN NPT 3/4" seal for mounting bases

0-1183-086-000010

28,00 €

TR-WM03-D-IN wall mount for DOME IPC32xS/E/L, IPC31x, IPC361xL series cameras

0-0482-086-000150

Alternatives

268,00 €

IPC3618SB-ADF28KMC-I0 TRI-GUARD 8Mpix DOME IP camera, 2.8mm (106,7°), IR up to 30m, PoE, IP67

0-0411-086-000720

246,01 €

IPC3618SB-ADF28KM-I0, 8Mpix 4K LightHunter DOME IP camera, 2.8mm (~112°), UltraH.265, IR up to 30m,

0-0411-086-000472

189,00 €

IPC354SB-ADNF28K-I0, 4Mpix DOME IP camera, 2.8mm (101.4°), Ultra H.265, smart IR up to 30m, IP67, Po

0-0411-086-000860

246,01 €

IPC3618SB-ADF28KM-I0, BLACK 8Mpix 4K LigtHunter DOME IP camera, 2,8mm (~112°), UltraH.265, IR 30m

0-0411-086-000473

473,50 €

DS-2CD2387G2-LU F2.8 8Mpix dome IP camera; BLACK, 2.8mm (102°); ColorVu; AcuSense; LED 30m; IP66

0-0411-036-001796

246,01 €

IPC3618SB-ADF40KM-I0, 8Mpix 4K LightHunter DOME IP camera, 4mm (~86°), UltraH.265, IR up to 30m,

0-0411-086-000482

IPC3618SB-ADF28KMC-I0 BLACK TRI-GUARD 8Mpix DOME IP camera, 2.8mm (106,7°), IR up to 30m, PoE, IP67
