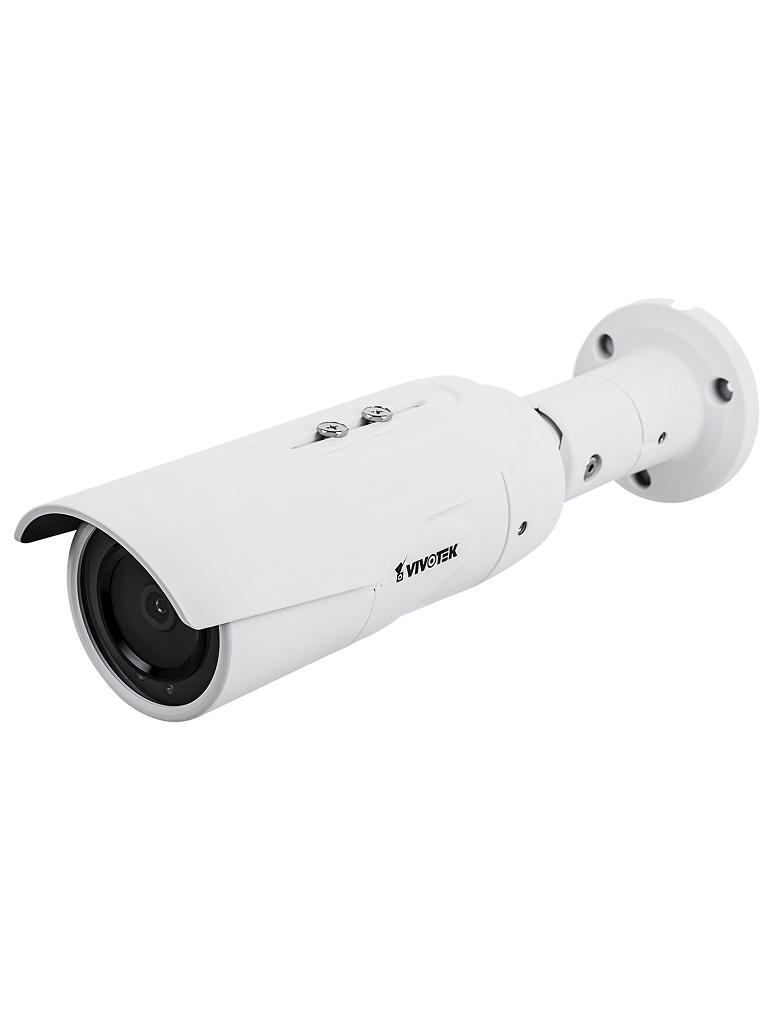

IB9389-EHT-V2 BULLET IP Camera, 5MP, 2.8~10mm, 95-41°, PoE, 30m IR, MicroSD, IK10, IP66

VIVOTEK’s IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IB9389 series is encased in IP66 and IK10 housing.

The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

Key Features

• 30 fps @ 2560x1920, 60 fps @ 1920x1080
• WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
• Built-in IR Illuminators, Effective up to 30 Meters
• Smart IR Technology to Avoid Overexposure
• Trend Micro IoT Security
• Vandal-proof IK10-rated, Weather-proof IP66-rated Housing
• 2.8 ~ 10mm Motorized Lens

Specifications

System Information:

• Model - IB9389-EHT-v2
• CPU - Multimedia SoC (System-on-Chip)
• Flash - 8 GB
• RAM - 1 GB

Camera Features:

• Image Sensor - 1/2.7" Progressive CMOS
• Max. Resolution - 2560x1920 (5MP)
• Lens Type - Motorized, Vari-focal, Remote Focus
• Focal Length - f = 2.8 ~ 10 mm
• Aperture - F1.8 ~ F2.74
• Iris Type - Fixed iris
• Field of View - 95°~41° (Horizontal); 69°~31° (Vertical); 127°~51° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
• Minimum Illumination - 0.06 lux @ F1.8 (Color); <0.01 lux @ F1.8 (B/W); 0 lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids - Remote focus, remote zoom


Video:

• Video Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560x1920; 60 fps @ 1920x1080
• Maximum Streams - 3 video streams (Up to 8 configurable profiles)
• S/N Ratio - 55 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Network:

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

• Compute Capability - SoC with built-in hardware deep learning accelerator
• Vision Object Analytics - Object Detection: people, vehicle  (4-wheeled); Path Extraction
• Application - Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
• Application available with license - Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics


Solution Integration:

• Applications - Stratocast, Trend Micro IoT Security (3-year free trial)


Alarm and Event:

• Event Trigger - Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
• Event Action - Event notification via email, HTTP, FTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, NAS server, SD card

General:

• Connectors - RJ-45 cable connector for 10/100Mbps Network/PoE connection
• LED Indicator - System power and status indicator

• Power Input - IEEE 802.3af PoE Class 0
• Power Consumption - Max. 12.95 W (IR on); Max. 9.95 W (IR off); Max. 12.95 W (IR on, Heater on); Max. 10.55 W (IR on, Heater off)
• Dimensions - Ø 88 x 308 mm
• Weight - 1 kg
• Certifications - EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A); RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
• Operating Temperature - Starting Temperature: -30°C ~ 50°C (-13°F ~ 122°F); Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR off); -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
• Humidity - 98% RH (non-condensing)

System Requirements:

• Operating System - Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above; Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

• Detect (25PPM/ 8PPF) - Wide: 65.8 m (216.0 ft) ; Tele: 140.5 m (461.0 ft)
• Observe (63PPM/ 19PPF) - Wide: 26.1 m (85.7 ft); Tele: 55.8 m (182.9 ft)
• Recognize (125PPM/ 38PPF) - Wide: 13.2 m (43.2 ft); Tele: 28.1 m (92.2 ft)
• Identify (250PPM/ 76PPF) - Wide: 6.6 m (21.6 ft); Tele: 14.0 m (46.1 ft)
