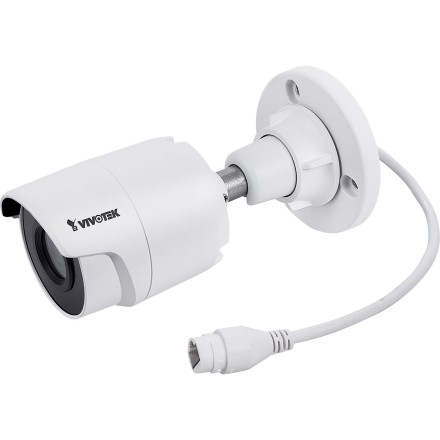

IB9380-H BULLET IP Camera, 5MP, 3.6mm, PoE, 30m IR, microSD, IK10, IP66

VIVOTEK’s IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

Key Features

• H.265 Compression Technology
• SNV (Supreme Night Visibility) for Low Light Conditions
• 20 fps @ 2560x1920 (WDR Pro on)
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Stream III to Optimize Bandwidth Efficiency
• Built-in IR Illuminators, Effective up to 30 Meters
• Trend Micro IoT Security
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Specifications

System Information:

• Model - IB9380-H
• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128 MB
• RAM - 512 MB

Camera Features:

• Image Sensor - 1/2.7" Progressive CMOS
• Max. Resolution - 2560x1920 (5MP)
• Lens Type - Fixed-focal
• Focal Length - f = 3.6 mm
• Aperture - F2.0
• Iris Type - Fixed iris
• Field of View - 76° (Horizontal); 59° (Vertical); 100° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination - 0.03 lux @ F2.0 (Color); <0.005 lux @ F2.0 (B/W); 0 lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video:

• Video Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 20 fps @ 2560x1920
• Maximum Streams - 3 video streams (Up to 8 configurable profiles)
• S/N Ratio - 67 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Network:

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

Solution Integration:

• Video Motion Detection - Five-window video motion detection
• VADP Package - Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event:

• Event Trigger - Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
• Event Action -Event notification via email, HTTP, FTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, NAS server, SD card

General:

• Connectors - RJ-45 cable connector for 10/100Mbps Network/PoE connection
• Power Input - IEEE 802.3af PoE Class 2
• Power Consumption - Max. 6.49 W/3.6 W (IR on/off)
• Dimensions - Ø 91.1 x 176.8 mm
• Weight - 530 g
• Certifications - EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
• Operating Temperature - Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Humidity - 90%

System Requirements:

• Operating System - Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above; Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above
