DS-2DE3A400BW-DE(F1)(T5) 4Mpix mini speed dome, 16x zoom, ColorVu, up to 30m, HIKVISION

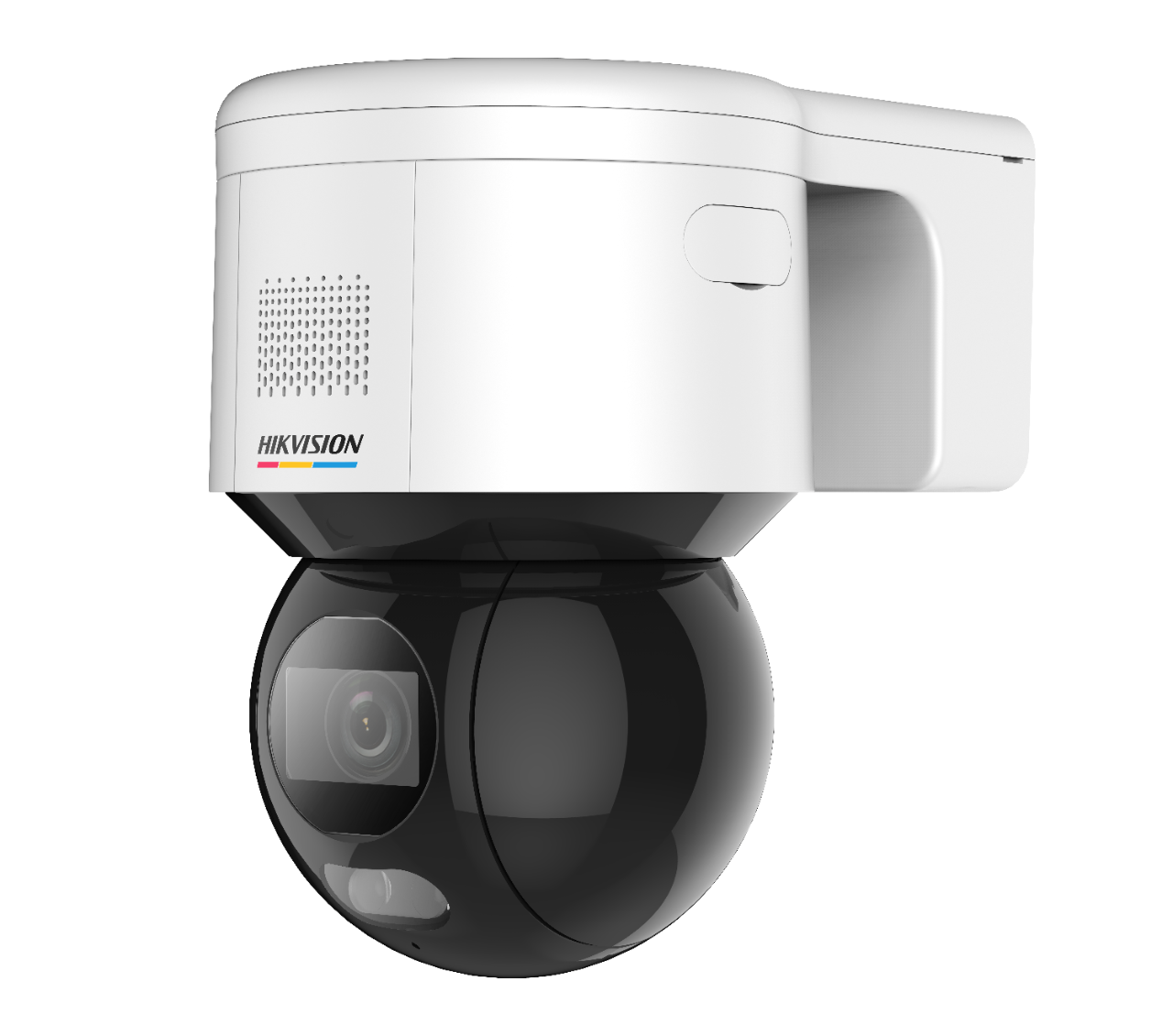

3-inch 4 MP ColorVu Mini PT Dome Network Camera

• Focuses on human and vehicle targets classification based on deep learning
• Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
• Linked audible and visual alarm. Built-in microphone and speaker
• Up to 2560 × 1440 @ 30 fps
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• 24/7 colorful imaging with low power consumption. Up to 30 m white light distance
• 120 dB WDR, 3D DNR, HLC
• IP66; PoE

Specification

Camera

Image Sensor -1/1.8" progressive scan CMOS

Min. Illumination -Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

Shutter Speed -1/1 to 1/30,000 s

Day & Night -24/7 colorful imaging

Zoom -16x digital

Max. Resolution -2560 × 1440

Lens

Focal Length -4 mm

FOV

• Horizontal field of view: 88.7°
• Vertical field of view: 46.5°
• Diagonal field of view: 105.0°

Aperture -F1.0

Illuminator

Supplement Light Type -White Light

Supplement Light Range -White Light Distance: up to 30 m

PTZ

Movement Range (Pan) -350°

Movement Range (Tilt) -0° to 90°

Pan Speed -Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s

Tilt Speed -Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

Proportional Pan -Yes

Presets -300

Power-Off Memory -Yes

Park Action -Preset, patrol scan

3D Positioning -Yes

Preset Freezing -Yes

Scheduled Task -Preset, patrol scan, dome reboot, dome adjust, aux output

Video

Main Stream

• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)


Sub-Stream

• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)


Third Stream

• 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
• 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)


Video Compression

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG

Scalable Video Coding (SVC) -H.264 and H.265 encoding

Region Of Interest (ROI) -8 fixed regions for each stream

Audio

Audio Compression -G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Environment Noise Filtering -Yes

Network

Network Storage -NAS (NFS, SMB/ CIFS)

Protocols -IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API -ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP

Simultaneous Live View -Up to 20 channels

User/Host -Up to 32 users. 3 levels: Administrator, Operator and User

Security -Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Web Browser -IE 10+, Chrome 57+, Firefox 52+, Safari 12+


Day/Night Switch -Day, night, auto, scheduled-switch

Image Enhancement -BLC, HLC, 3D DNR

Wide Dynamic Range (WDR) -120 dB WDR

Defog -Digital defog

Regional Exposure -Yes

Image Settings -Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch -Yes

Privacy Mask -Up to 24 masks (8 masks for each scene)

SNR -＞52 dB

Interface

Built-In Speaker -1 built-in speaker

Power Output -12 VDC; < 60 mA

Ethernet Interface -1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)

On-Board Storage -Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB

Alarm -1 input, 1 output

Audio -1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

RS-485 -1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset -Yes

Event

Basic Event -Video tampering alarm, motion detection, alarm input, alarm output, exception

Smart Event -Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Alarm Linkage -Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

Deep Learning Function

Face Capture -Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

Perimeter Protection -Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)

General

General Function -Mirror, password protection, watermark, IP address filter

Power -12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 14 W (including max. 4 W for white light)

Operating Condition - Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)

Demist -Yes

Dimension -179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")

Weight -Approx. 1.125 kg (2.48 lb.)

Approval

Protection

IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
