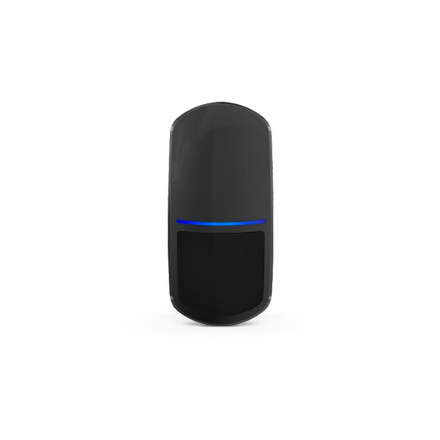

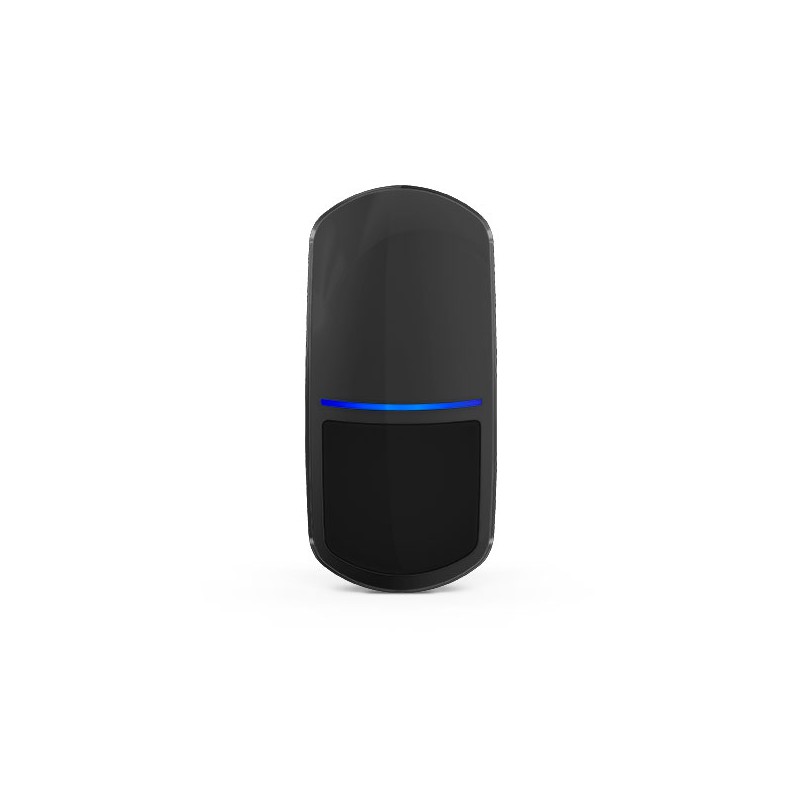

The Satel SLIM-PIR is a motion detector that detects movement in the protected area. The device has received a certificate that meets the high safety requirements of the EN 50131 standard for Grade 2. The SLIM-PIR detector has a detection angle of 90 degrees and a range of 15 meters. The sensitivity for all detectors can also be set accurately via the buttons on the print.
The SLIM-PIR is part of the SATEL SLIM LINE series. The SLIM LINE consists of 10 different motion detectors with exactly the same attractively designed appearance, of which 5x PIR and 5x PIR+MW. It is therefore impossible for a burglar to deduce from the appearance which model it is. The detectors are equipped with built-in EOL resistors and are quick and easy to install: quickly open the housing by turning the closure a quarter turn and simply wire via removable terminal blocks.
Features:
- Meets the EN 50131 requirements for Grade 2
- Motion detection via the passive infrared (PIR) detector
- Adjustable detection sensitivity
- Digital motion detection algorithm
- Digital temperature compensation
- Wide angle lens, specially designed for SLIM LINE detectors
- Built-in end-of-line resistors (2EOL: 2 x 1k1)
- LED indication
- Adjustable color for the LED indication (4 available colours)
- LED indication can be switched on/off remotely
- Supervision of the motion detection and power supply circuit
- Tamper protection against opening the housing
Specifications:
- Supply voltage: 12 V DC
- Standby consumption: 8 mA
- max. consumption: 23 mA
- Detection range: 15 m x 20 m, 90°
- EOL resistors: 2 x 1.1 kΩ
- Detection speed: 0.3...3 m/s
- Alarm signaling time: 2 s
- Warm-up period: 30 s
- Recommended installation height: 2.4 m
- Permissible installation height: up to 4 m
- LED colours: dark blue, red, white and light blue
- Maximum humidity: 93±3%
- Operating temperature range: -10...+55 °C
- Housing dimensions: 62 x 137 x 42 mm
- Detector weight (without bracket): 100 g
- Environmental class according to EN50130-5: II
- Standards Complied: EN50131-1, EN50131-2-4, EN50130-4, EN50130-5
- Security class: Grade 2
- Certification: TT-118/2020
| Manufacturer | SATEL |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
