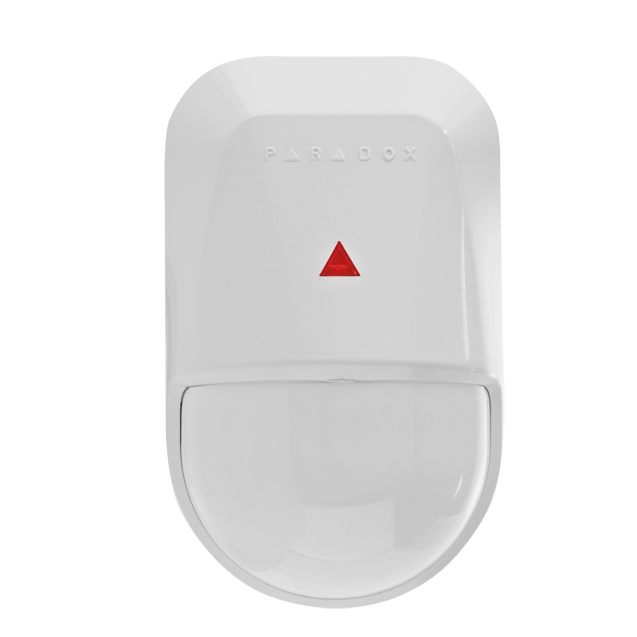

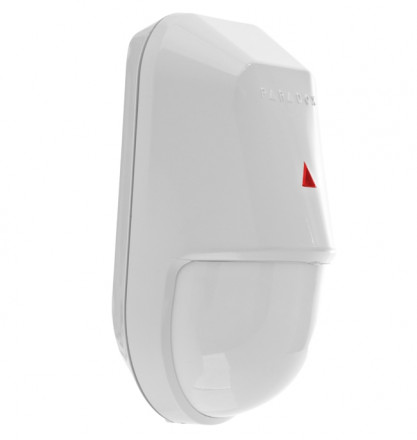

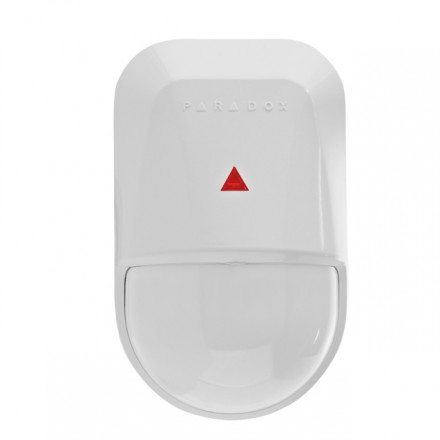

NV5 motion detector, PET 16 kg., 102*, 12m., Grade2

Add to wish list

Print this page

Price:	13,00 €
Product number:	0-0141-001-000080
Manufacturer	PARADOX PARADOX
Category	Indoor movement IR or MW sensors

Ready for shipping

Quantity:

Quantity:

- +

Features:

Infrared motion detector managed by Full Authority Digital Electronics Control (FADEC)

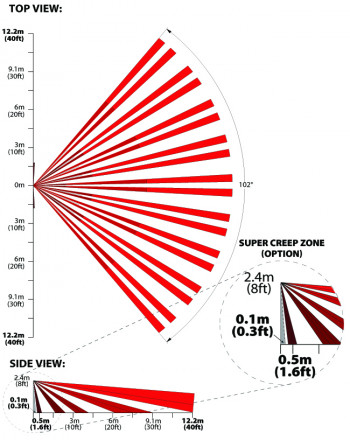

Paradox's Hybrid Cylindrical-Spherical 1.0" lens with 3rd generation 3D Lodiff® Fresnel segments- (10 x 10 m (32.8 x 32.8 ft.), 102° viewing angle, and 0.5 m (1.6 ft) to max range (no dead zone beam pattern)
Paradox's equalized detection pattern - ensures equal sensitivity throughout the protected area
Paradox Super Creep down-looking beam optic option for straight down detection
Pet Immunity up to 16 kg (35 lb)
Dual/Single Edge Processing selection - the only one in its class
Paradox patented Dual Digital Auto Pulse Signal Processing (APSP) with two-level selection
Digitally equalized temperature compensation; unit performance specifically tailored to obtain same catch capability at all specified operating temperatures
Digital Sensitivity trimmer adjustment with five range levels and LED feedback, allows for perfect unit adjustment for all room sizes

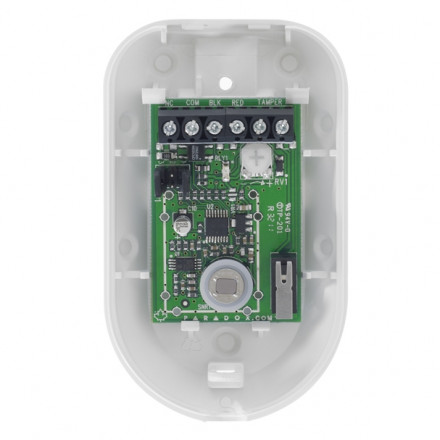

Miniature yet easy to install with no PCB removal or adjustment
5 levels of sensitivity – choose level according to the needs of the protected area
CE and EN50131 Grade 2 approved (see PARADOX.com for latest approval updates)

More information and user manuals can be found in the "Downloads" section.

Manufacturer	PARADOX
In stock	Yes

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

Features:

Infrared motion detector managed by Full Authority Digital Electronics Control (FADEC)
Paradox's Hybrid Cylindrical-Spherical 1.0" lens with 3rd generation 3D Lodiff® Fresnel segments- (10 x 10 m (32.8 x 32.8 ft.), 102° viewing angle, and 0.5 m (1.6 ft) to max range (no dead zone beam pattern)
Paradox's equalized detection pattern - ensures equal sensitivity throughout the protected area
Paradox Super Creep down-looking beam optic option for straight down detection
Pet Immunity up to 16 kg (35 lb)
Dual/Single Edge Processing selection - the only one in its class
Paradox patented Dual Digital Auto Pulse Signal Processing (APSP) with two-level selection
Digitally equalized temperature compensation; unit performance specifically tailored to obtain same catch capability at all specified operating temperatures
Digital Sensitivity trimmer adjustment with five range levels and LED feedback, allows for perfect unit adjustment for all room sizes
Miniature yet easy to install with no PCB removal or adjustment
5 levels of sensitivity – choose level according to the needs of the protected area
CE and EN50131 Grade 2 approved (see PARADOX.com for latest approval updates)

More information and user manuals can be found in the "Downloads" section.
