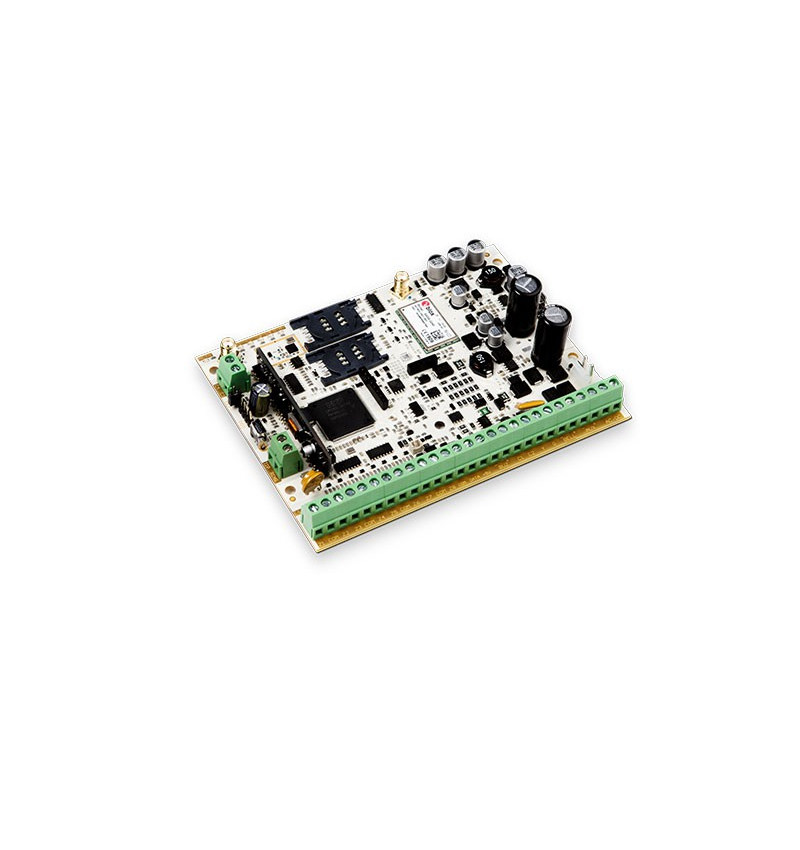

Power supply: 16-24V 50/60 Hz ~1.5A max / 18-24V 1,5A max
Recommended backup battery voltage / capacity: 12V; 1,3-7Ah
Backup battery charge duration: Up to 30 hours for 7Ah battery
GSM modem frequency: 850/900/1800/1900 MHz
SIM card type: SIM ×2
Number of wired zones on-board: 8 (ATZ mode: 16)
Number of wired PGM outputs on-board: 4
Number of zones via 2xEPGM1: 16+16
Number of PGM via 2xEPGM1+EPGM8: 2+2+8
Number of wireless zone: 128
Number of supported wireless devices: 64
Number of zones MAX: 144
Supported third-party wired smoke detectors: 2-wire, 4-wire
Number of supported 2-wire smoke detectors: Up to 8
Support of temperature sensors (number): Yes (8)
Wireless band (ELDES protocol): ISM868 for Region1 and ISM915 for Region2
Wireless communication range: Up to 3000m (9843ft) in open areas
Communications: SMS, GPRS network, CSD, Ethernet via ELAN3-ALARM
Supported protocols: Ademco Contact ID, EGR100, Kronos, Cortex SMS, SIA IP
Dimensions: 140x100x18mm
Operating temperature range: -20…+55°C
Humidity: 0-90% RH @ 0… +40°C (non-condensing)
| Manufacturer | ELDES |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
