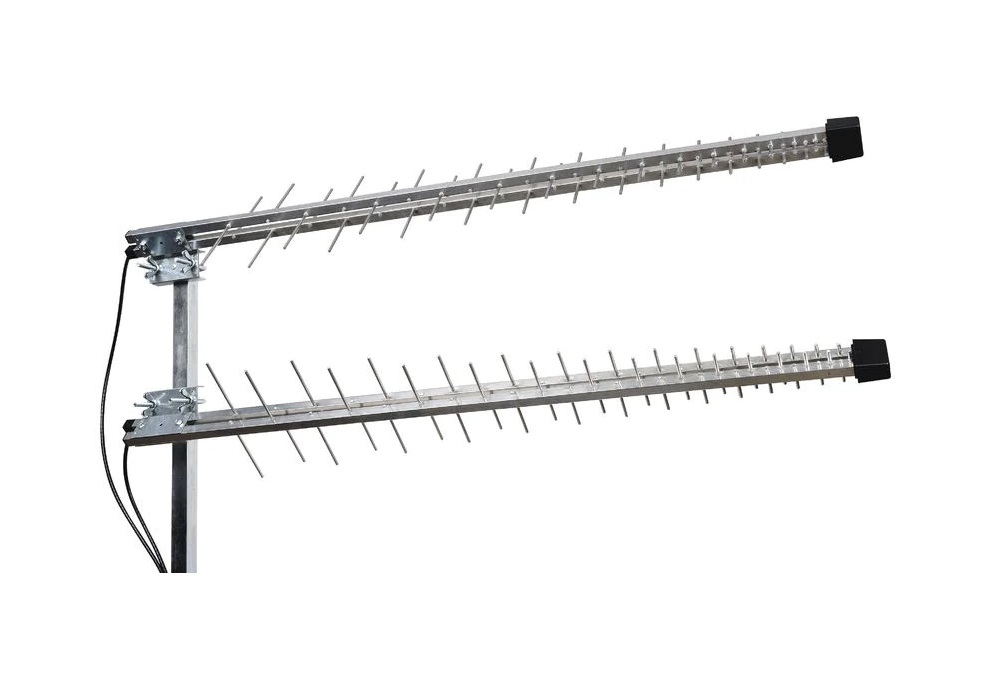

ISKRA antenna U-MIMO 3G 4G LTE
High gain communication antenna.
- Antenna frequency 700-2700 MHz.
- SMA-Male connector (P-58-L700-10).
- Dual polarization.
- Complements 10 years. length cable.
Specification:
- Antenna Gain: 9-11 dBi
- Cable length: 10 m Connector:
- SMA male Impedance: 50 ohms
- Max. power connection: 50 W
- Antenna length: 1070 mm
- Number of elements: 58
- Polarization: 2 × 45 degrees
- Front-back ratio: 23 dB
- Beam width H/V: 54/46°
- VSWR: <1.6
Frequencies:
- LTE 700 & 800: 698-862MHz / 9.5 dBi
- LTE 1800: 1710-1880MHz / 11 dBi
- LTE 2600: 2500-2700MHz / 11 dBi
- 3G 900: 880-960MHz / 10 dBi
- 3G 2100: 1920-2170MHz / 11 dBi
- Wi-Fi (WLAN): 2401-2495MHz / 11 dBi
Home delivery (recommended)
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
ISKRA antenna U-MIMO 3G 4G LTE
High gain communication antenna.
- Antenna frequency 700-2700 MHz.
- SMA-Male connector (P-58-L700-10).
- Dual polarization.
- Complements 10 years. length cable.
Specification:
- Antenna Gain: 9-11 dBi
- Cable length: 10 m Connector:
- SMA male Impedance: 50 ohms
- Max. power connection: 50 W
- Antenna length: 1070 mm
- Number of elements: 58
- Polarization: 2 × 45 degrees
- Front-back ratio: 23 dB
- Beam width H/V: 54/46°
- VSWR: <1.6
Frequencies:
- LTE 700 & 800: 698-862MHz / 9.5 dBi
- LTE 1800: 1710-1880MHz / 11 dBi
- LTE 2600: 2500-2700MHz / 11 dBi
- 3G 900: 880-960MHz / 10 dBi
- 3G 2100: 1920-2170MHz / 11 dBi
- Wi-Fi (WLAN): 2401-2495MHz / 11 dBi
