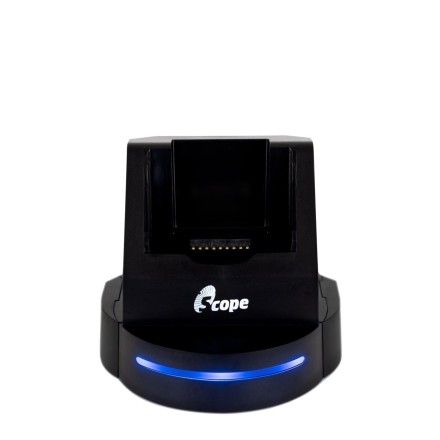

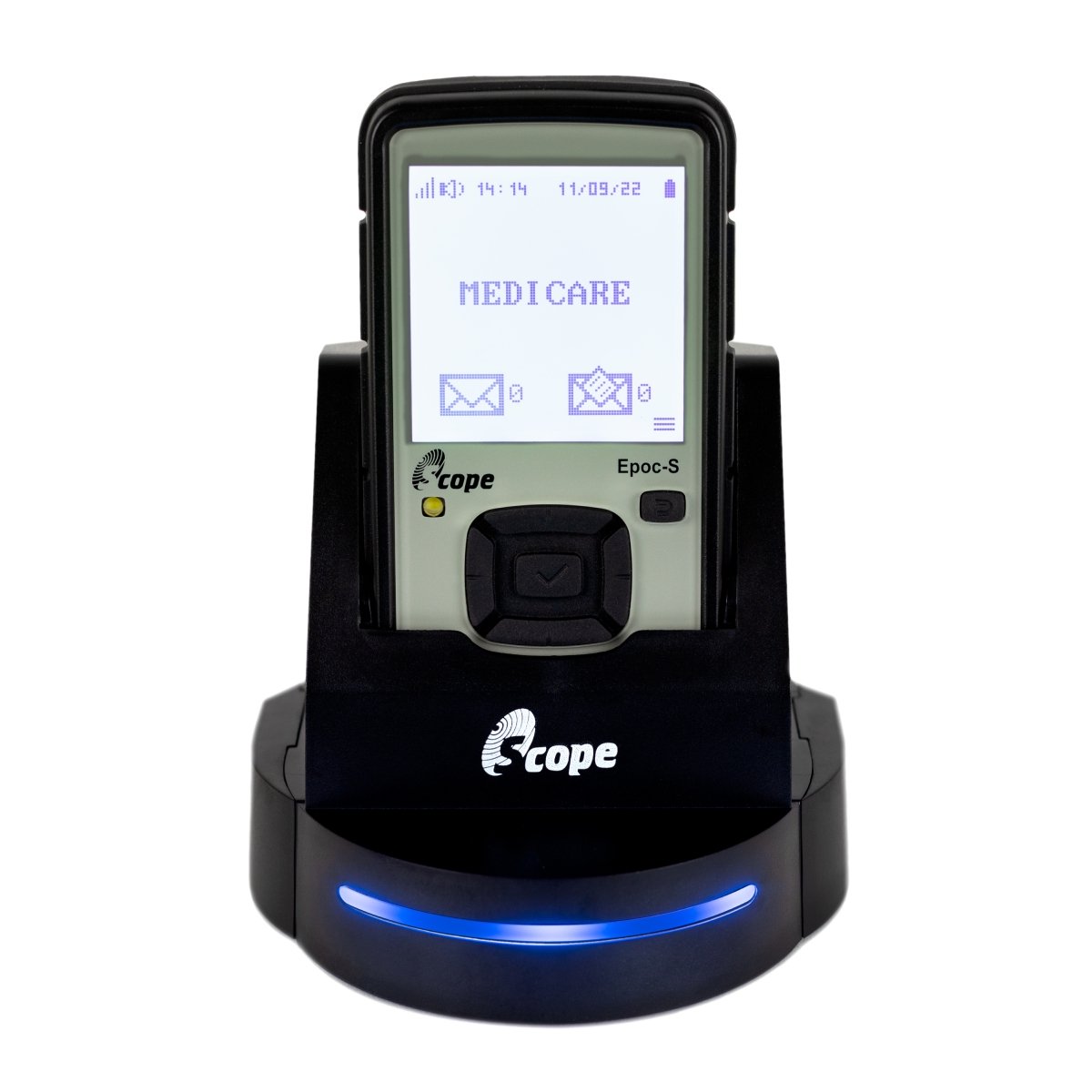

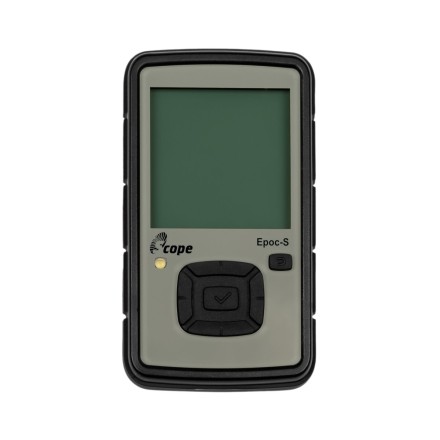

Receives call from the Medicare system via a paging transmitter (MED5) . Epoc Alpha Numeric IP67 rechargeable Pager with colour screen and docking station.
Power requirements 230vac supply to plug top transformer.
Technical Information
Display - 35.5 x 35.5 mm LCD, 96 x 96 dots, Multi-colour backlight, 8 lines of 16 characters per line
Addresses - 128 addresses (software decoding), each with 4 sub-addresses
Message storage - 20 messages of 256 characters each, 64 pre-defined messages, 10 pre-defined Tx, Ack & Status messages
Alerts - 21 tones selectable, Vibrate/Tone & Vibrate/Vibrate then Tone/Mute, Flash LED
Size - 54.7 (W) x 97.4(H) x 16.7 (D) mm
Weight - 90g (with battery)
Signalling protocol - POCSAG
Data transmit/receive rate - 512, 1200 baud
Power supply - Li-lon 3.7v battery 700 mA
Charger - 5V mikro USB įvestis
Approvals Compliance - EN 300 220 (Radio), EN 301489 (EMC)
| Manufacturer | MEDICARE |
| IP standard | IP67 |
| Power | 230V AC |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
Receives call from the Medicare system via a paging transmitter (MED5) . Epoc Alpha Numeric IP67 rechargeable Pager with colour screen and docking station.
Power requirements 230vac supply to plug top transformer.
Technical Information
Display - 35.5 x 35.5 mm LCD, 96 x 96 dots, Multi-colour backlight, 8 lines of 16 characters per line
Addresses - 128 addresses (software decoding), each with 4 sub-addresses
Message storage - 20 messages of 256 characters each, 64 pre-defined messages, 10 pre-defined Tx, Ack & Status messages
Alerts - 21 tones selectable, Vibrate/Tone & Vibrate/Vibrate then Tone/Mute, Flash LED
Size - 54.7 (W) x 97.4(H) x 16.7 (D) mm
Weight - 90g (with battery)
Signalling protocol - POCSAG
Data transmit/receive rate - 512, 1200 baud
Power supply - Li-lon 3.7v battery 700 mA
Charger - 5V mikro USB įvestis
Approvals Compliance - EN 300 220 (Radio), EN 301489 (EMC)
| Manufacturer | MEDICARE |
| IP standard | IP67 |
| Power | 230V AC |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
Accessories
HTM4100 wireless15" Touch screen display panel, Wi-Fi ready, LAN, battery backup
MED5 Paging transmitter has to be connected to a Medicare Touchscreen Display Panel
