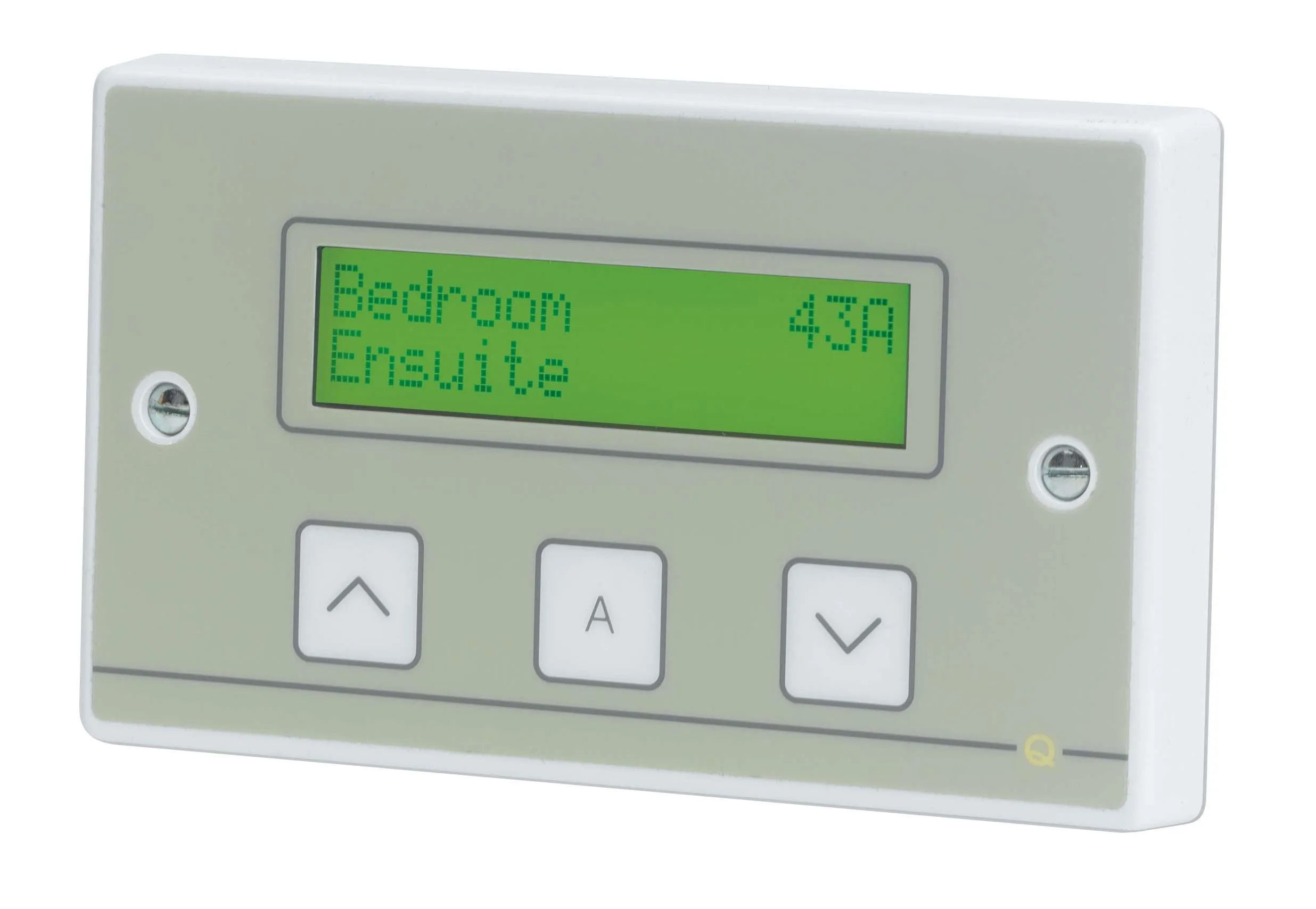

- A 16 character x 2 line display used to indicate incoming calls in corridors, staff rooms, nursing stations, etc.
- Includes an onboard sounder and buttons to accept, scroll through and manually divert calls.
- Shows call type, call location and (depending on the device used to make the call) the User ID or name of the person calling.
- Highest priority calls are shown first with a message saying how many calls are waiting.
- Flash and sounder rates intensify to reflect the urgency of incoming calls.
- Adjustable contrast and volume controls.
- External sounder connection.
Power requirements Nominal 24V DC (from Quantec Controller/Network)
Quiescent current 5mA (with back light off).
Indicators 2 line x 16 character backlit LCD display.
Controls Accept (A); Scroll Up; Scroll Down. Adjust contrast; Adjust volume; Enable internal/external beeper.
Connections Net +: Net –
Expansion connections External sounder connection (current sink to the NET- line rated at 30 V, 30mA, 300 mW dissipation max.)
Onboard Sounder Yes.
Onboard Infrared Receiver No.
Product dimensions (mm) 146 W x 87 H x 35 D mm. Mount on a 35mm deep back box.
Construction & finish Plastic.
IP Rating IP40.
Weight 166g.
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
| Manufacturer | C-TEC |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
