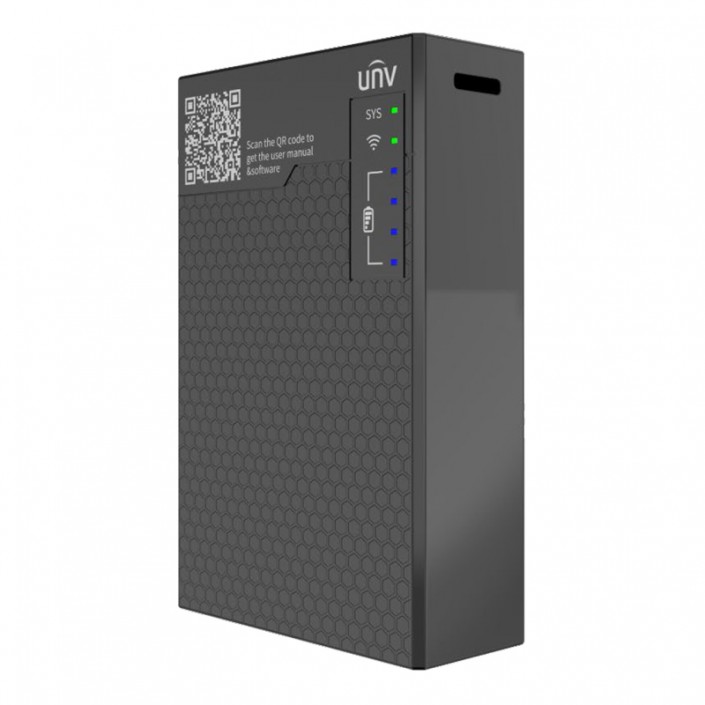

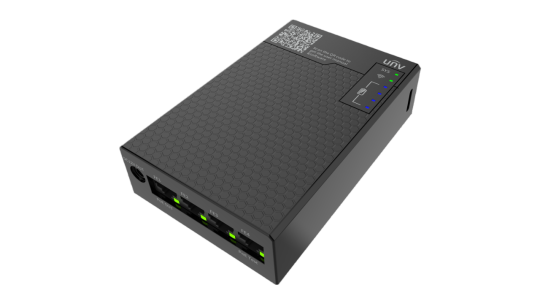

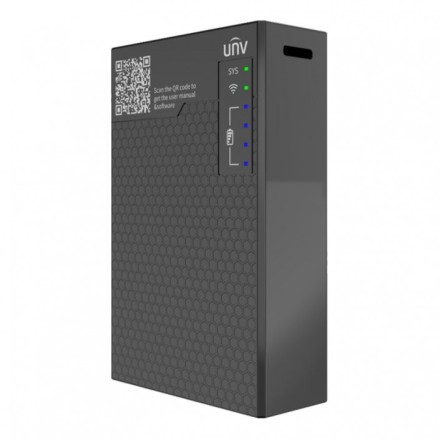

GCB01-B7 UNV-Link Pro Camera Mounting Box, 7500mAh, PoE, WiFi
The Uniview Connect Box is designed to help with the installation and commissioning of UNV cameras; and provide solutions to common problems, such as IP address modification, temporary power and network supply, voltage detection etc. It connects to a smartphone using the UNV-Link Pro app and allows you to connect to a camera using the Connect Box's built-in Wi-Fi hotspot, and access the camera's live view and settings easily from your phone. The Connect Box is a portable device, measuring 130mm x 85mm x 33mm and comes with a range of I/O for different uses:

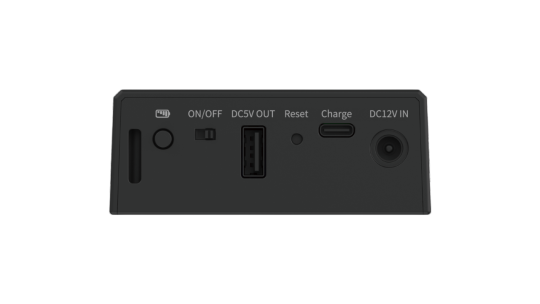

Main features:
- On/Off switch
- Reset Button
- USB-A DC5V Output (to charge a smartphone, up to 1A/5W)
- USB-C Input (to charge the Connect Box, up to 2A/10W)
- DC12V Input (to test DC voltage, between 1V and 56V)
- DC12V Output (to supply DC power to an IP camera, up to 1A/12W)
- 4x Ethernet Port (Port 1 can supply POE up to 0.5A/12W, Port 4 can test the output voltage of an external POE device)
More information and user manuals can be found in the "Downloads" section.
| Manufacturer | UNIVIEW |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
