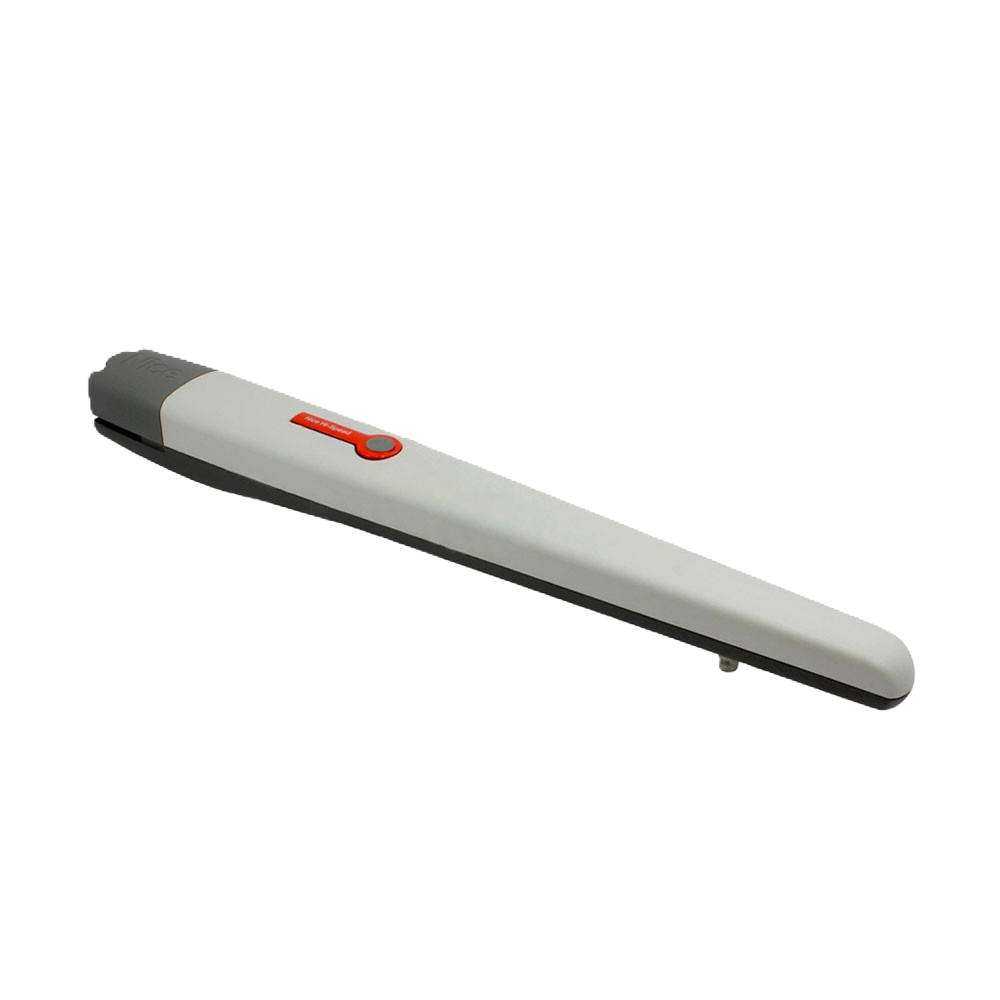

TO5024HS - hi-speed automation for swing gates
Electromechanical gear motor surface mounted powered at 24V DC with magnetic encoder.
Ideal for industrial installations, designed for intensive use.
Reliable
Durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish more resistant to atmospheric agents. Internal moving parts completely in steel, light alloys and technopolymers.
Silent
Patented layout of internal parts and lead nut in bronze.
Generously sized and practical connection compartment
Rapid and easy access from above to internal parts located in the upper section of the motor.
Main features:
- motor power supply: 24V
- current load: max 5A (nominaly 2,5A)
- power consumption: 120W
- working stroke: 505mm
- strength: max 1800N
- intensity work: 75 cycles/h
- operating temperature: -20°C...+ 50°C
- degree of protection: IP44
You can find more information in "Downloads" section.
| Manufacturer | Nice |
| In stock | Yes |
| IP standard | IP44 |
| Cycles per hour | 75 |
| Power | 24V DC |
