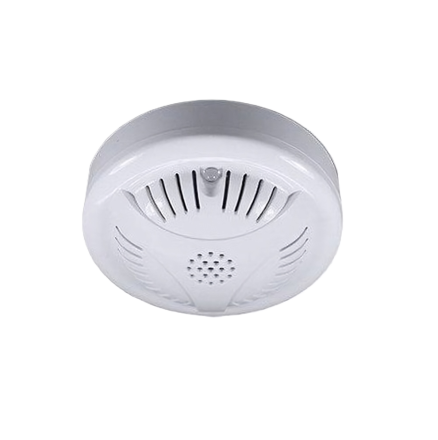

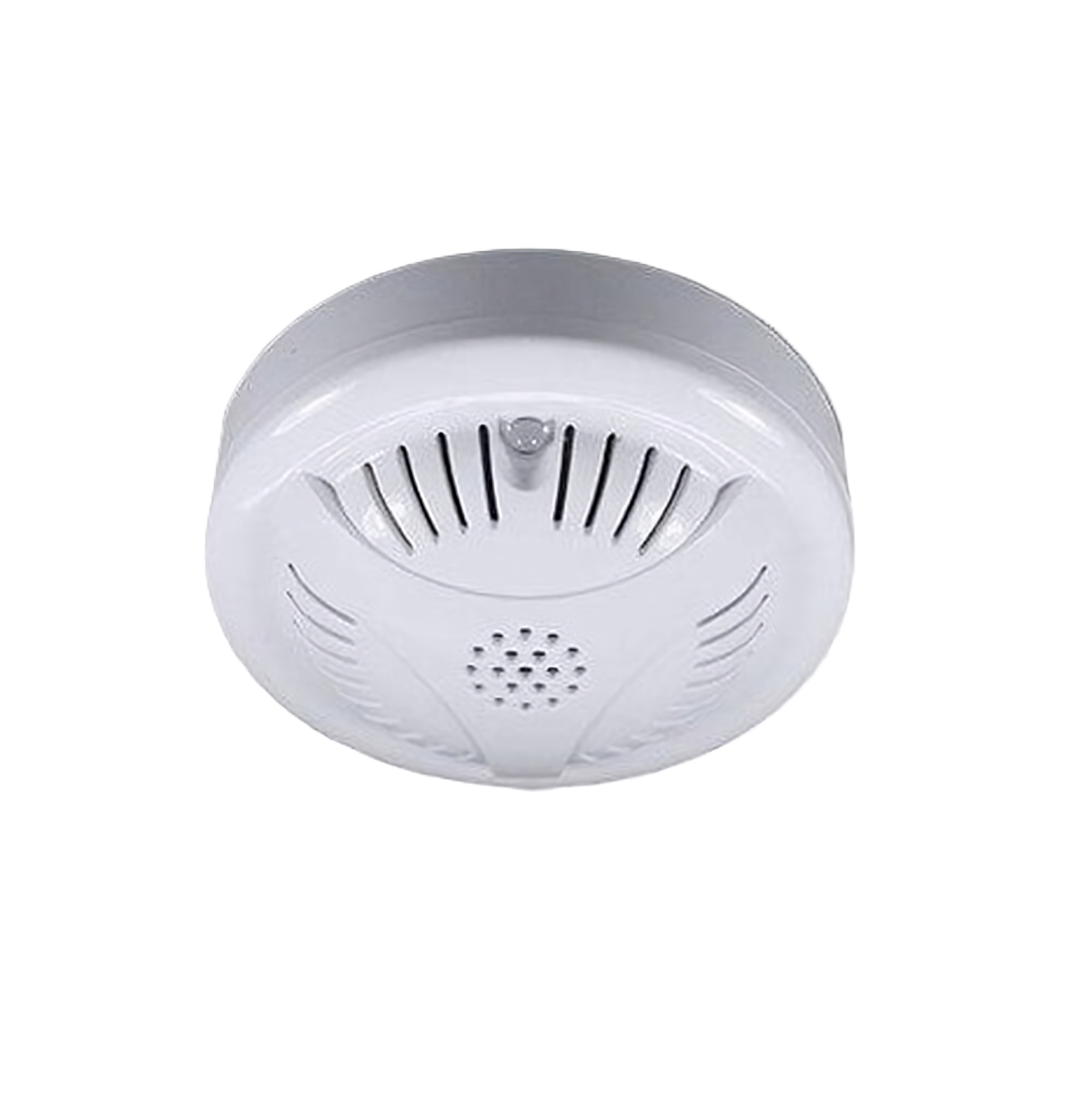

400-003 CO gas leakage detector, relay output, 12/24V, Numens
400-series non-addressable carbon monoxide (CO) alarms are suitable for connection to 2-wire and 4-wire non-addressable fire detection control and indication equipment.
Advanced electronics in conjunction with a semiconductor gas sensor provide early detection of carbon monoxide gas and high immunity against unwanted alarms.
Technical specification:
- Working voltage - DC (10.8 ~ 26.4) V
- Starting current ≤ 100 µA
- Start-up time ≤ 10 min
- Quiescent current 50 µA
- Rest state indicator - Flashing red LED every 5 s
- Alarm current (max.) - 50 mA
- Alarm status indicator - Steady red LED
- Alarm relay: SPST. N/A or N/A. 1.0A @ DC 30V / 0.5A @ AC 125V
- Speaker output ≥ 85 dB @ 3 m
- Reset voltage ≤ 1 V
- Reset time ≤ 10 s
- Automatic reset time < 30 s
- Indication of internal failure - Single short beep every 30 s
| IP standard | IP42 |
| Power | DC (10,8 ~ 26,4) V |
