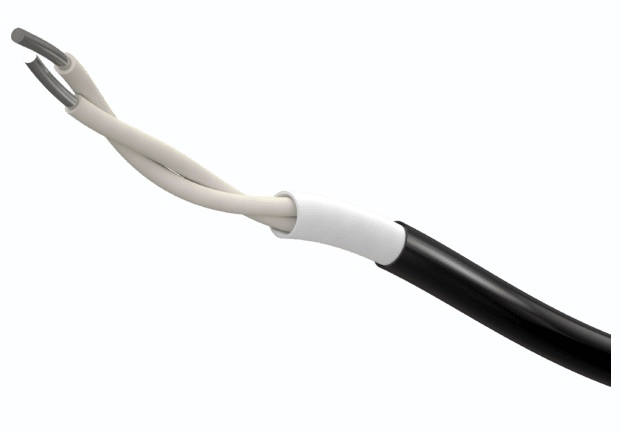

Signaline Fixed Temperature Linear Heat Detector (Signaline FT) detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated. Signaline FT is available in four different temperature settings and two outer cover options making the Signaline FT suitable for use in a very wide range of applications
Specs:
- Alarm temperature 88°C (190°F)
- Max ambient temp. 70°C (158°F)
- Conductor resistance 0.1Ω/M or 0.029Ω/FT @20°C
- Max voltage 42Vdc or 30Vac
- Dielectric withstand (UL) 500Vdc
- Tensile strength 1700 N/mm²
- Minimum bend radius 75mm
- Overall diameter 4.5mm
- Weight 16kg/500M
- Outer sheath material Chemical resistant nylon
- Colour Black
- Approvals UL, cUL
| Manufacturer | SIGNALINE |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
