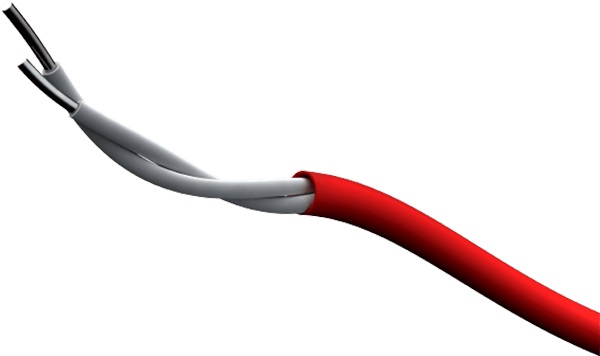

Signaline FT-EN is a brand new linear heat detection system approved to EN54 part 28. Fixed Temperature Linear Heat Detectors detect a build up of heat anywhere along their length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated.
Signaline FT-EN is approved by UL to EN54 part 28 as non-resettable line type heat detector. It is Low Smoke Zero Halogen (LSZH) and is available in either 78°C or 88°C alarm temperatures.
The cable outer coating is made from a UV and chemical resistant compound making the cable suitable for even the harshest of environments.
Signaline FT-EN is used with the Signaline LocatorPlus-EN and FT-EOL-EN to make a complete EN54 part 28 approved system.
Max reel length 500m (sold in 50m increments, MOQ = 50m)
- Alarm temperature 78°C (155°F)
- Max ambient temp. 45°C (113°F)
- Min. ambient temp -40°C (-40°F)
- EN54-28 performance T078-V10-A045
- Environmental group II
- Conductor resistance 1.25Ω/M per core
- Max voltage 74Vdc or 49Vac
- Humidity 0% to 98% RH
- Insulation 1kV tested protective outer coating
- Tensile strength 1700 N/mm²
- Minimum bend radius 100mm
- Overall diameter 5.72mm
- Weight 16kg/500M
- Outer sheath UV & chemical resistant sheath (red)
- Features Low-Smoke Zero Halogen (LSZH), UV Stable, Oil
- Resistant, Flame Retardant
- Colour Red
| Manufacturer | SIGNALINE |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
