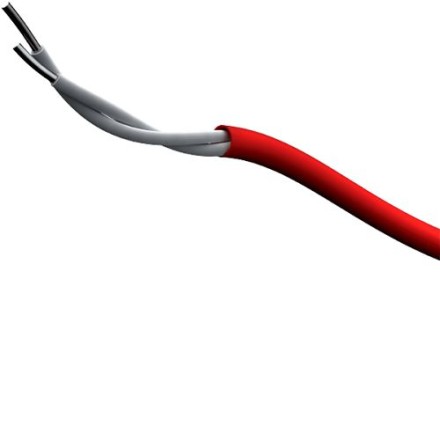

LHD Alarm Temperature: 68°C, LSZH, EN54 Part 28 Approved
Discover the efficiency of Signaline FT-68-EN Linear Heat Detector for reliable and accurate linear heat detection. Signaline FT-EN is a Linear Heat Detection system approved to EN54 part 28.
What is linear heat detection and how does it work?
Linear heat detection is a method used to detect heat or fire along a linear path, such as in car parks, solar panels, tunnels or conveyor belts. It works by using a heat-sensitive cable that detects changes in temperature. When the cable reaches a certain temperature, it triggers an alarm or activates a fire suppression system.
Signaline FT-EN is approved by UL to EN54 part 28 as non-resettable line type heat detector.
It is Low Smoke Zero Halogen (LSZH) and is available in either 68°C, 78°C or 88°C alarm temperatures.
The cable outer coating is made from a UV and chemical resistant compound making the cable suitable for even the harshest of environments. Signaline FT-78-EN and Signaline FT-88-EN is now approved for enviornmental group III – the highest environmental classification!
Signaline FT-EN Linear heat detection is also now available with optional stainless steel outer coating for increased mechanical protection. Ideal for use in conveyors, moving walk-ways or machinery areas.
For increase installation speed Signaline FT-EN linear heat detection can be provided with catenary wire decreasing onsite time and increasing efficiency.
Signaline FT-EN is used with the Signaline LocatorPlus-EN and FT-EOL-EN to make a complete EN54 part 28 approved system.
- Alarm temperature 68°C (155°F)
- Max ambient temp. 45°C (113°F)
- Min. ambient temp -40°C (-40°F)
- EN54-28 performance T068-V10-A045
- Environmental group II
- Conductor resistance 1.25Ω/M per core
- Max voltage 74Vdc or 49Vac
- Humidity 0% to 98% RH
- Insulation 1kV tested protective outer coating
- Tensile strength 1700 N/mm²
- Minimum bend radius 100mm
- Overall diameter 5.72mm
- Weight 16kg/500M
- Outer sheath UV & chemical resistant sheath (red)
- Features Low-Smoke Zero Halogen (LSZH), UV Stable, Oil Resistant, Flame Retardant
- Colour Red
| Manufacturer | SIGNALINE |
| In stock | Yes |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
