Z13 8x Inputs / Outputs A-BUS Card for CAST ZFP

Add to wish list

Print this page

This item is not on stock and has to be re-ordered.

Quantity:

Quantity:

- +

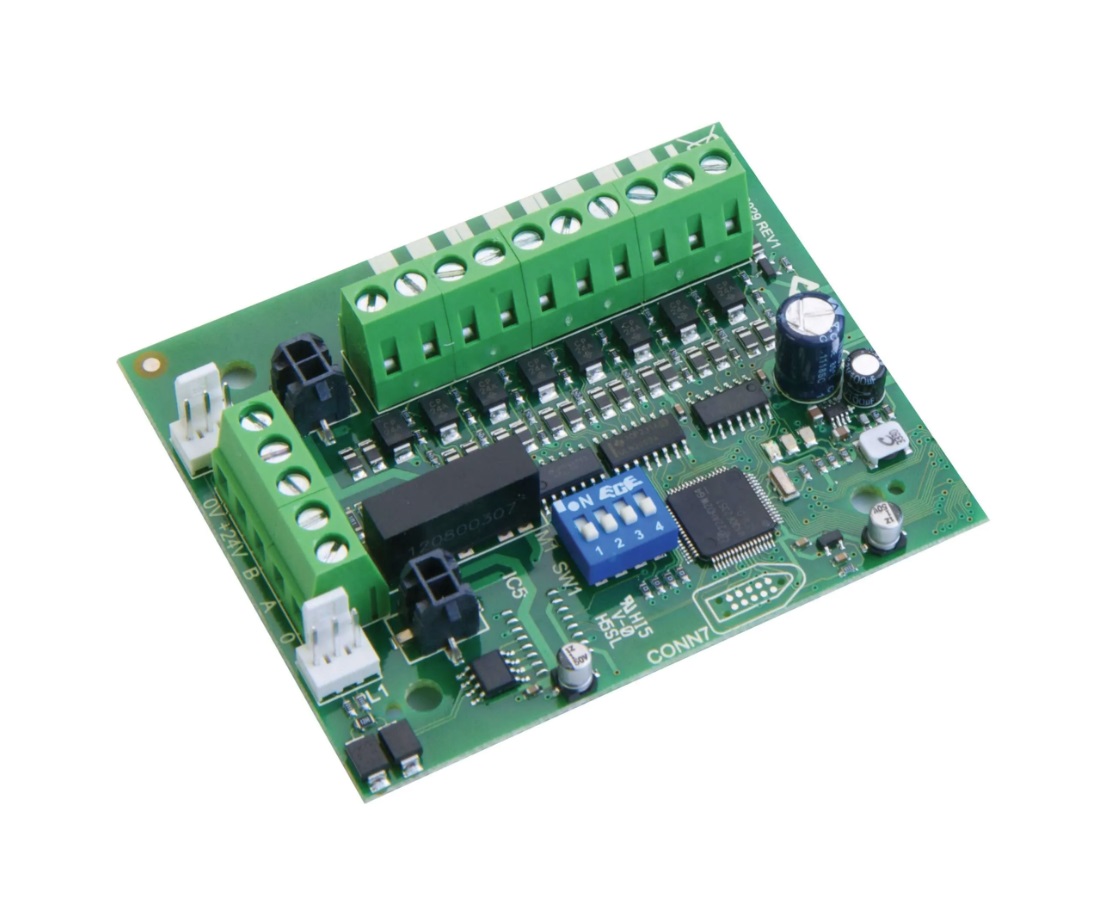

8-Way Input Output PCB designed to enhance the functionality of a ZFP addressable fire panel.
Provides 8 monitored switch inputs/open collector outputs (dependent on wiring configuration used).
Full size PCB can be scored in the middle to produce a half size 8 Input Output PCB.
Programmable via the ZFP’s PC Tools.
Polling, power and separate Input/Output Activated LED indicators.
Up to 15 A-BUS Expansion PCBs can be connected to a ZFP Panel via its RS485 A-BUS network.
Typically installed within the ZFP panel but can work up to 1 KM away for non-EN 54-2 functions.

Specifications:

Type	8 monitored switch inputs/open collector outputs (dependent on wiring configuration used).
Indicators	Polling LED; Power LED; Input/Output Activated (x8).
Connections	A-BUS RS485 connections (B, A, 0) to main ZFP PCB; 24V supply input (from main ZFP PCB or external EN54-4 PSU); Comms and Power In/Out connections. 8 monitored switch inputs/open collector outputs
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
Network specification	Dedicated A-BUS RS485 monitored radial circuit. 1KM max length. Up to 15 A-BUS PCBs per panel.
Notes	Inputs active when switched to GND (28mA current per active input); 100mA open collector output sink; Use Dipswitch SW1 to set the PCB's address – see main ZFP panel instructions for details.

Manufacturer

C-TEC

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

8-Way Input Output PCB designed to enhance the functionality of a ZFP addressable fire panel.
Provides 8 monitored switch inputs/open collector outputs (dependent on wiring configuration used).
Full size PCB can be scored in the middle to produce a half size 8 Input Output PCB.
Programmable via the ZFP’s PC Tools.
Polling, power and separate Input/Output Activated LED indicators.
Up to 15 A-BUS Expansion PCBs can be connected to a ZFP Panel via its RS485 A-BUS network.
Typically installed within the ZFP panel but can work up to 1 KM away for non-EN 54-2 functions.

Specifications:

Type	8 monitored switch inputs/open collector outputs (dependent on wiring configuration used).
Indicators	Polling LED; Power LED; Input/Output Activated (x8).
Connections	A-BUS RS485 connections (B, A, 0) to main ZFP PCB; 24V supply input (from main ZFP PCB or external EN54-4 PSU); Comms and Power In/Out connections. 8 monitored switch inputs/open collector outputs
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
Network specification	Dedicated A-BUS RS485 monitored radial circuit. 1KM max length. Up to 15 A-BUS PCBs per panel.
Notes	Inputs active when switched to GND (28mA current per active input); 100mA open collector output sink; Use Dipswitch SW1 to set the PCB's address – see main ZFP panel instructions for details.
