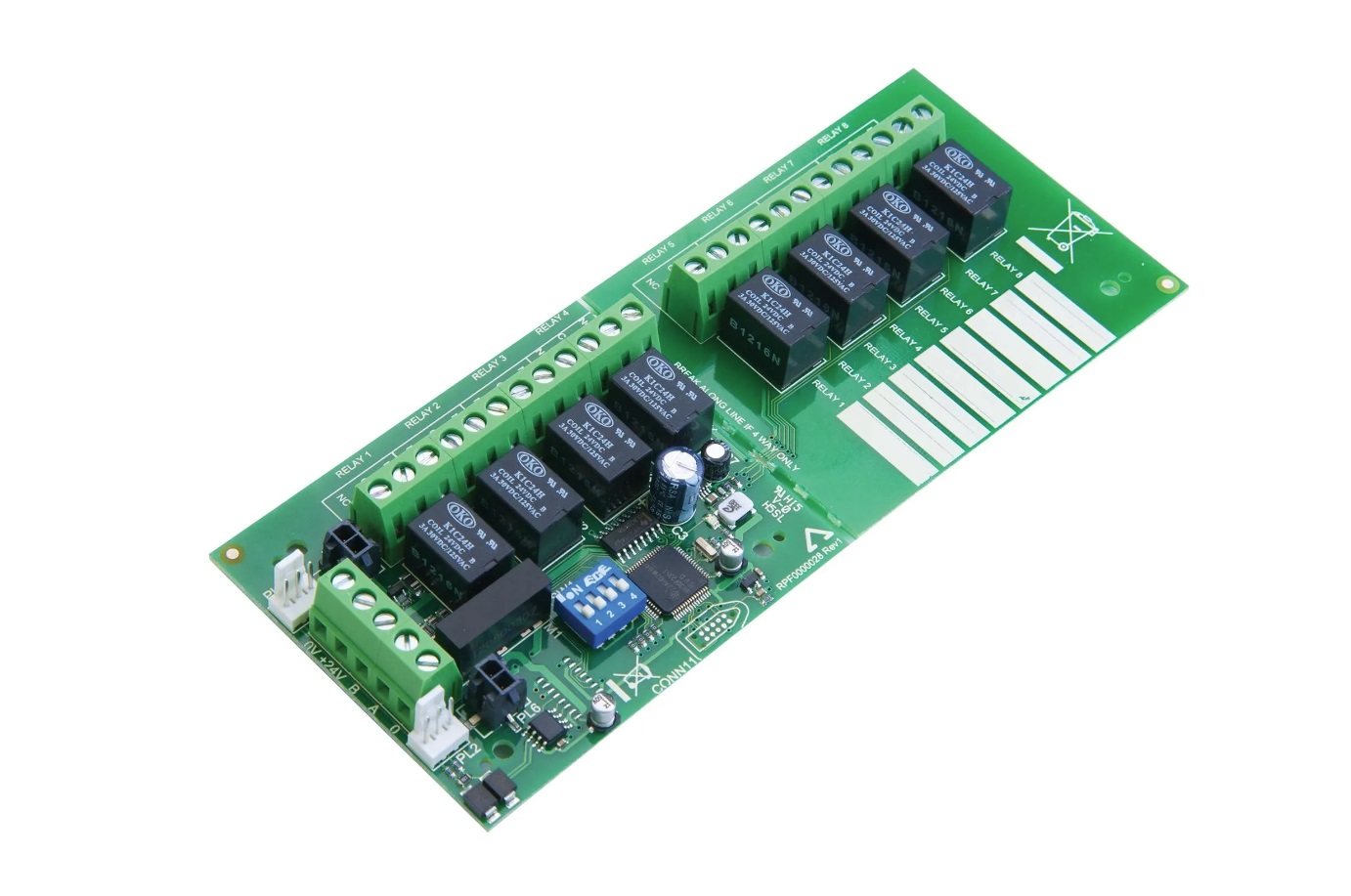

Z12 8x Relay Outputs (1A/30V) A-BUS Card for CAST ZFP

Add to wish list

Print this page

This item is not on stock and has to be re-ordered.

Quantity:

Quantity:

- +

8-Way Relay PCB designed to enhance the functionality of a ZFP addressable fire panel to include 8 additional relay outputs.
8 x 1A 30V single pole contacts.
Full size PCB can be scored in the middle to produce a half size 4 way relay PCB.
Programmable via the ZFP’s PC Tools.
Polling, power and separate Relay Actibvated LED indicators.
Up to 15 A-BUS Expansion PCBs can be connected to a ZFP Panel via its RS485 A-BUS network.
Typically installed within the ZFP panel but can work up to 1 KM away for non-EN 54-2 functions.

Specifications:

Type	Volt-free single pole changeover; 1A, 30Vdc (max.)
Indicators	Polling LED; Power LED; Relay Activated (x8).
Connections	A-BUS RS485 connections (B, A, 0) to main ZFP PCB; 24V supply input (from main ZFP PCB or external EN54-4 PSU); Comms and Power In/Out connections. 8 x NO/C/NC relay connections.
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
Network specification	Dedicated A-BUS RS485 monitored radial circuit. 1KM max length. Up to 15 A-BUS PCBs per panel.
Notes	Use Dipswitch SW1 to set the PCB's address – see main ZFP panel instructions for details.
