| Approvals/certifications | Certified to EN54-17/18 by the LPCB. |
| Compatibility | Compatible with C-TEC's XFP/ZFP CAST Addressable Fire Panels. |

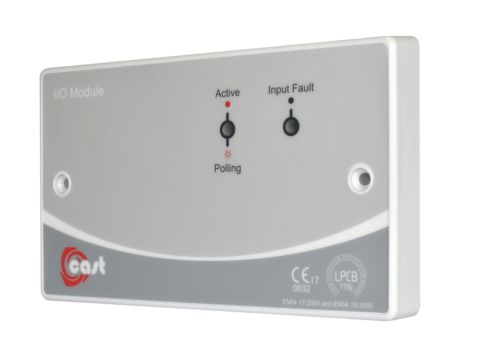

| Application/operation | Incorporates the functions of a switch monitor, zone monitor, simple switch interface and mains-switching output unit in one device. |
| Supply/operating voltage | 27 to 40V DC. |
| Quiescent current | 1.7mA. |
| Activation current | 6mA. |
| Auxiliary relays | One volt-free single pole changeover relay rated at 5A @ 230 VAC or 5A @ 30 VDC. Non-monitored. Clean contact. |
| Auxiliary inputs | One monitored input that can be set to operate as: (1) a single zone monitor to support up to 20 ActiV detectors and 10 MCPs or (2) a monitored normally-open switch, triggered by a 470R. |
| Indicators | Active (Lit Red): relay activated; monitored zone triggered or monitored switch closed; Polling (Flashing Red): communication check with the panel; Input Fault (Lit Yellow): fault detected on the monitored zone/switch. |
| Connections | Six 45º screw-type connectors that can take 0.5-2.5mm2 cable: +Ve & -Ve Loop In; +Ve & -Ve Loop Out; Zone +Ve & -Ve. Also includes N/O, N/C & C relay connections. |
| Product dimensions (mm) | 147 W x 87H x 22 D mm. Can be mounted on a standard 25mm UK flush or surface double gang back box. |
| Construction & finish | ABS Polycarbonate plate with a 200 micron two-tone grey velvet polyester label with red and white detailing. |
| IP Rating | IP40 when correctly installed. |
| Weight | 122g. |
| Operating conditions/temperature | -10ºC to +55ºC. |
| Manufacturer | C-TEC |
| In stock | Yes |
| IP standard | IP40 |
