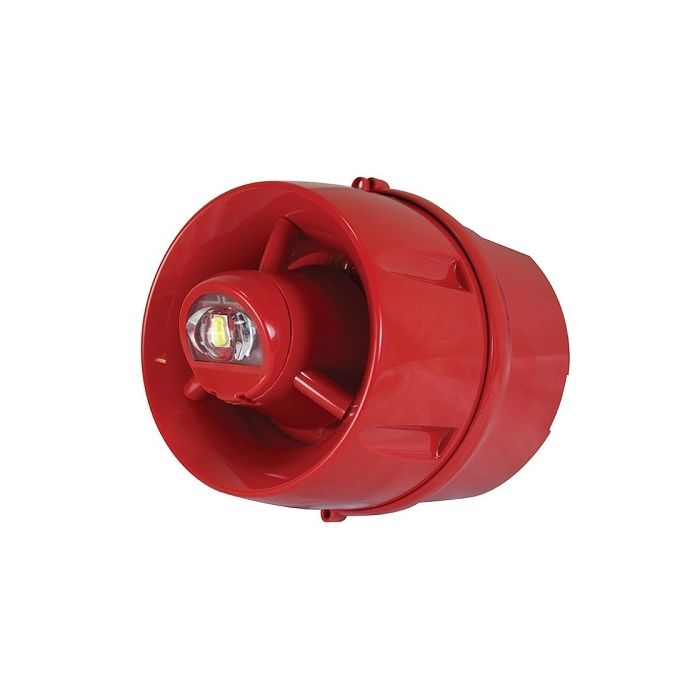

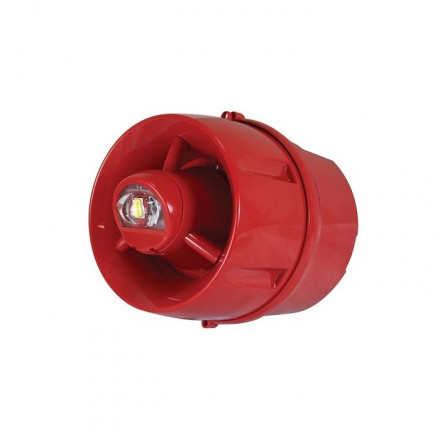

CA433A/DR/65 CAST Weatherproof Hi-Output W-2.75-9 Wall VAD c/w 100dB(A) Sounder (deep base) (IP55)

Add to wish list

Print this page

Only some items on stock - order quickly!

Quantity:

Quantity:

- +

Approvals/certifications	Certified to EN54-3, 23 & 17 by the LPCB.
Protocol/compatibility	Compatible with C-TEC's CAST protocol Addressable Fire Panels.
Application/operation	Designed to be wall mounted. IP55 rated and suitable for use outdoors.
VAD category & coverage	W-2.75-9 rated light distribution. Also certified as a W-4-4 rated VAD.
Flash rate & colour	0.5Hz / White.
Supply/operating voltage	27 to 40V DC.
Quiescent current	550µA.
Nominal SPL (Sound Pressure Level)	100dB(A) when set to tone 1.
Alarm current	14.5mA (VAD lit, Sounder on max).
Indicators	Polling (red LED).
Product dimensions (mm)	114mm diameter x 131mm deep.
IP Rating	IP55 (Type B).
Weight	315g.
Operating conditions/temperature	-10ºC to +55ºC. Max. 95% RH (Non-condensing).

Home delivery (recommended)

You will get an e-mail with parcel ID, once the goods are sent out

Approvals/certifications	Certified to EN54-3, 23 & 17 by the LPCB.
Protocol/compatibility	Compatible with C-TEC's CAST protocol Addressable Fire Panels.
Application/operation	Designed to be wall mounted. IP55 rated and suitable for use outdoors.
VAD category & coverage	W-2.75-9 rated light distribution. Also certified as a W-4-4 rated VAD.
Flash rate & colour	0.5Hz / White.
Supply/operating voltage	27 to 40V DC.
Quiescent current	550µA.
Nominal SPL (Sound Pressure Level)	100dB(A) when set to tone 1.
Alarm current	14.5mA (VAD lit, Sounder on max).
Indicators	Polling (red LED).
Product dimensions (mm)	114mm diameter x 131mm deep.
IP Rating	IP55 (Type B).
Weight	315g.
Operating conditions/temperature	-10ºC to +55ºC. Max. 95% RH (Non-condensing).
