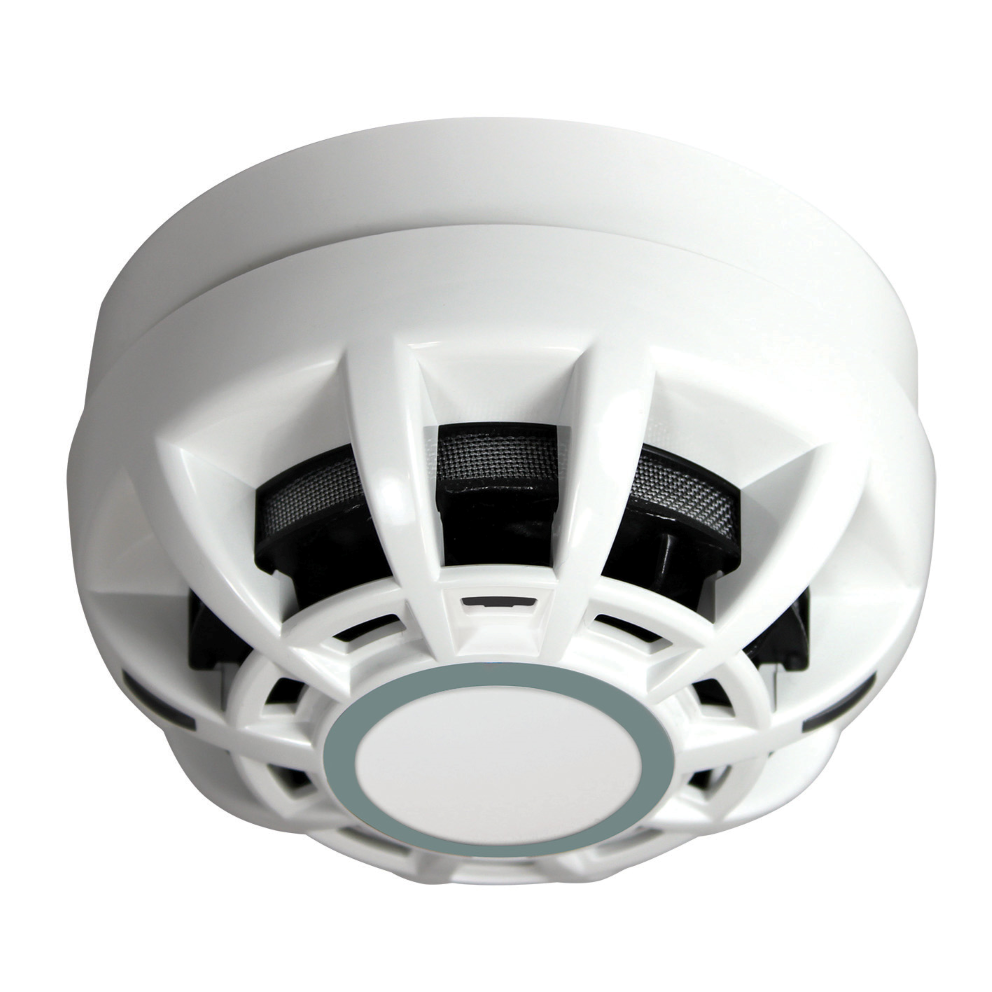

CP416 CAST-PRO Smoke Detector
The C-TEC CAST-PRO CP416 is a programmable optical smoke detector designed for accurate fire detection while minimizing false alarms. It features C-TEC's MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms for improved reliability, making it suitable for demanding environments. Certified to EN54-7 & 17, it includes drift compensation, dual LED indicators for 360° visibility, and operates at low power. Compatible with the ZFP fire panel and designed for ease of installation with a CA408 CAST base.
Features:
- Certified to EN54-7 & 17.
- Compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel.
- MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
- Drift compensation functionality.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Two detection modes (normal & high sensitivity).
- <1mA alarm current.
- 570uA typical quiescent current @ 40V DC.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
You can find more information in the "Downloads" section.
| Manufacturer | C-TEC |
