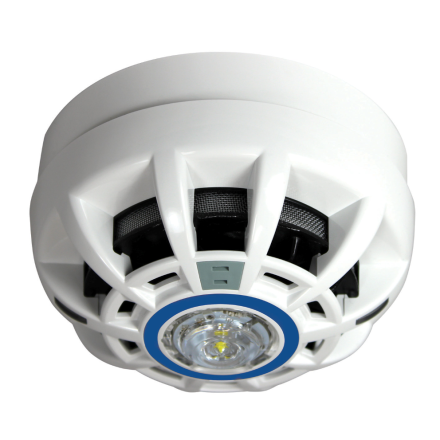

CP414TV CAST-PRO Smoke, Heat Multisensor c/w Tone Sounder & C-3-9.4 White VAD
The CAST-PRO CP414TV is an advanced smoke and heat multisensor fire detector equipped with an integrated tone sounder and white Visual Alarm Device (VAD). Designed for rapid and reliable fire detection, it combines innovative features to reduce false alarms while ensuring quick responses to genuine fire conditions. Certified to multiple EN54 standards, the device supports a high-performance design ideal for modern fire safety systems.
Features:
- Certified to EN54-3, 5, 7, 17, 23 & 29.
- Compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel.
- MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
- Drift compensation functionality.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Multiple detection modes and different sensitivities for different times of the day.
- 13.2mA max. alarm current (max vol, VAD on).
- 590uA typical quiescent current @ 40V DC.
- Compatible with C-TEC’s CA408 CAST base.
You can find more information in "Downloads" section.
| Manufacturer | C-TEC |
