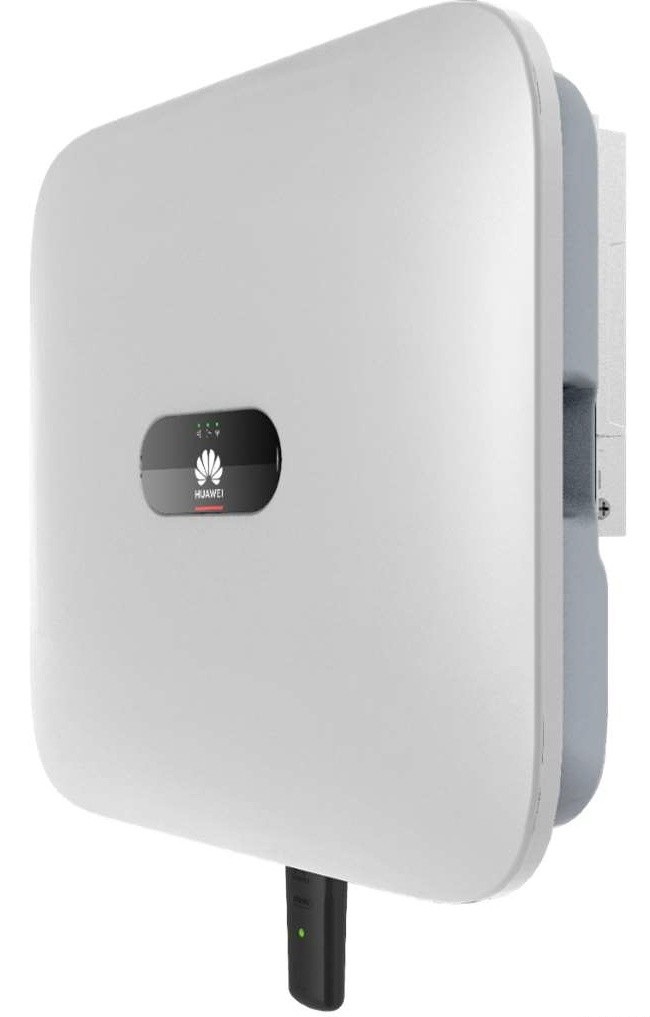

Smart PV string inverter:
High efficiency inverter topology, Max. Efficiency 98.6%
Can be combined with Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
Up to 30% higher yields contributed by optimizing each panel performance
Hybrid inverter with battery input
Integrated battery interface for future quick battery connection without extra device or retrofit cost
Ripple control receiver interface
AI-based arc detection AFCI
Communication:
- Smart dongle-WLAN-FE (integrated)
- Smart dongle-4G (optional)
Features:
- Recommended max. PV input power: 6kW
- Max. input voltage: 1100 V
- Number of MPP trackers / Input number per MPP tracker: 2 / 1
- Battery Input operating voltage range: 600 V - 980 V
- Battery Input Max. operating current: 16 A
- Rated output power: 4 kW
- Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
- Max. output current: 6,8 A
- DC and AC surge protection: Surge arresters SPD2
- Degree of protection: IP65
- Weight (incl. mounting bracket): 17 kg
- Dimension (incl. mounting bracket): 525 x 470 x 146,5 mm
| Manufacturer | HUAWEI |
