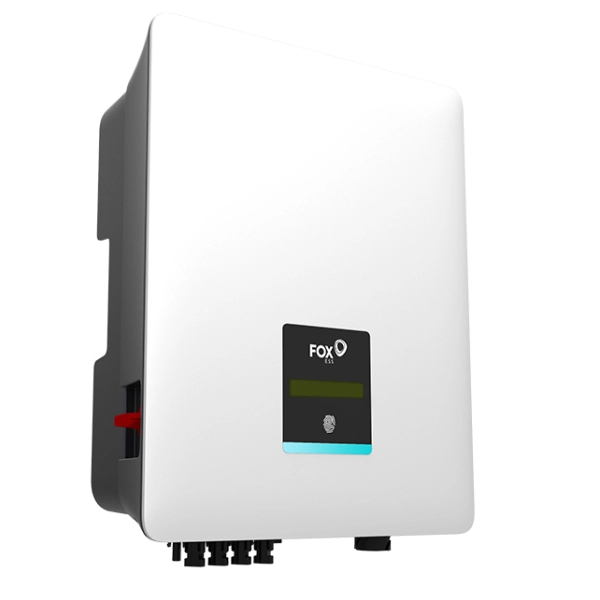

The T series inverters are designed for three-phase domestic and small commercial installations, offering unmatched performance and versatility for increased yield potential and longer power generation periods. Options/powers of T series 3-phase inverters range from 3 kW to 25 kW.
Main features:
- Low starting voltage
- Wide voltage range
- 98.6% maximum efficiency
- Fully optimized for expansion with FoxESS storage systems
- Suitable for outdoor installation (IP65)
- Remote monitoring thanks to the mobile application
Specification:
- Maximum recommended DC power: 9000 W
- Maximum DC voltage: 1100 V
- Nominal operating voltage DC: 600 V
- Maximum input current (input A / input B): 14 / 14 A
- Maximum short-circuit current (input A / input B): 18.2 / 18.2 A
- MPPT voltage range: 140-1000 V
- MPPT voltage range (at full load): 230-850 V
- Starting voltage: 140 V
- Number of MPPT trackers: 2
- Series for each MPPT: 1 + 1
- Nominal AC power: 6000
- Maximum apparent power AC: 6600
- Rated starting voltage: 3/N/PE,230/400(310-480) V
- Rated network voltage: 50/60, ± 5
- AC nominal current: 8.7 A
- Maximum AC current: 9.6 A
- Power shift factor: 1 (0.8 - overexcited to 0.8 - under excited)
- Total harmonic distortion: < 3%
- Dimensions: 480 x 370 x 183.5 mm
- Weight: 17 kg
- Cooling: Convection
- Protection degree (in accordance with IEC60529): IP65
- Topology: Transformerless
- Protection class: III (AC side), II (DC side)
- Noise level (typical): < 55
- Maximum working altitude: 3000 m
- Operating temperature range: -20 - 60 °C (reduced at 45 °C)
- Storage temperature range: -40 - 70 °C
- Humidity: 0-100% (No condensation)
- Own consumption (night): < 3
- WiFi communication module (standard) / GPRS (optional)
- Communication: Counter, DRM, USB upgrade, E-stop, RS485
- Display: LCD, touch key, Application, website
- 12-year warranty
