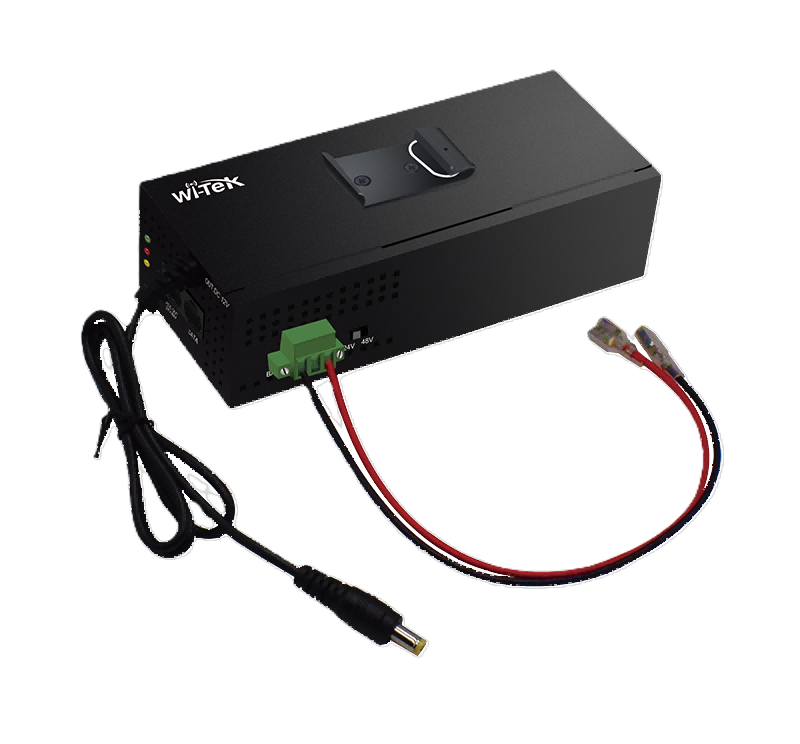

WI-PS302G-UPS PoE Power Supply, 48V 30W, 24V passive 24W, DC 12V 3A, Battery Charger
WI-PS302G-UPS is a versatile 24/48V PoE injector with 1000Mbps ports. It supports both AC power input and 12V battery power input. Moreover, it equips with 1*12V DC output port and 1*24/48V DC output. Dual power input channel design provides a redundant power supply method, if the 12V battery is connected, this PoE injector can work as an uninterruptible power supply system. Featuring voltage booster technology, it can also provide switchable 24V/48V DC and switchable 24V/48V PoE power output when 12V battery supply power without AC input.
Features:
- 2*10/100/1000Mbps Ports UPS No-break PoE Injector
- 24/48V PoE output optional
- Support AC 90-240V in, 12V Lead-acid battery 30Ah max
- Support DIN-rail Mount and wall-mount
- Small size design for outdoor CCTV system waterproof box
Application:
- Provide 1*10/100/1000Mbps Ethernet port
- Provide 1*10/100/1000Mbps 24V/48V PoE (Switch by DIP) Ethernet port
- Provide 1*24V/48V DC output (Switch by DIP)
- Provide 1*12V@1A max DC output (For NVRs, router, light, etc.)
- Provide 12V 1.6A max DC for charging Lead-acid battery, the battery will supply power when there is no AC input
You can find more information in "Downloads" section.
