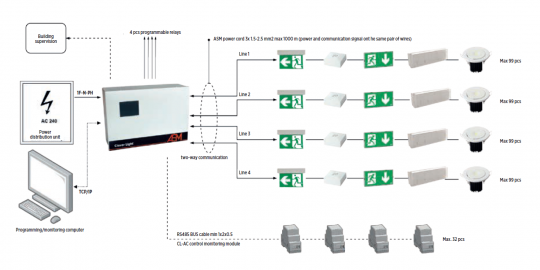

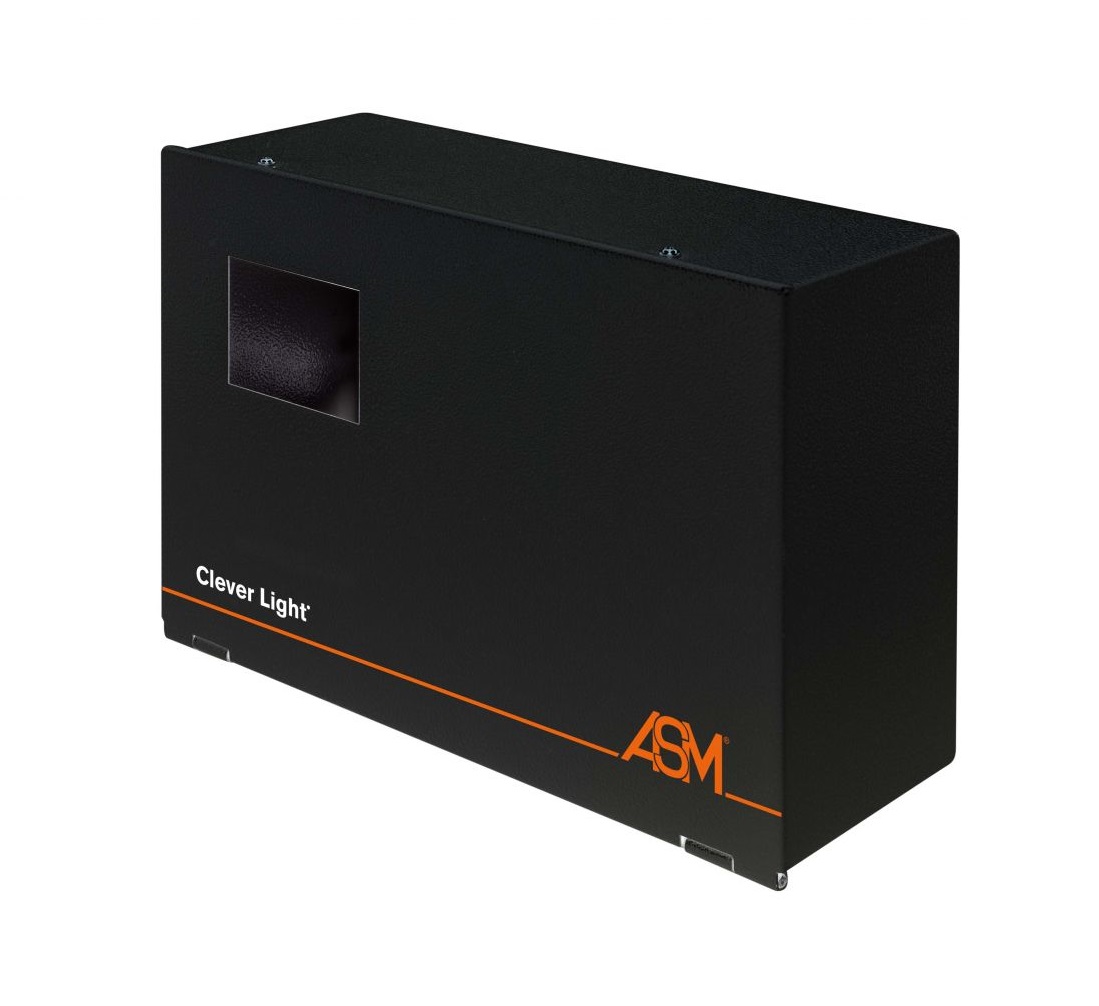

The main unit CL-100 (control panel) directly, or through a subcentre (CL-AC 230 controller) controls and supervises the operation of the luminaires in the system.
Checks the presence of the working voltage in the split circuit of the building with the help of the control modules.
Number of devices max 99 devices per line, max - 1line*
Incoming voltage range 100-240 V AC-DC 50/60 Hz
Output voltage range 100-240 V AC-DC 50/60 Hz
Circuit load capacity 3A
Communication ASM power cord, TCP/IP, Modbus
Network TCP/IP network (max 254 panels per system)
Luminaire control Individually or in groups
Store events 2000 events/control panel
Software CL-UNI programming software
Language English, Hungarian
Display 3.2 LCD
Output 4 pcs programmable relays
Protection IP20
Dimensions W:305 mm, D:100 mm, H:210 mm
*It is possible to offer by request other models of control panels which may control up to 396 lightings (4 lines x 99lightings)
Other necessary accessories in the system:
- CL-AC 230 controller
- Software
- Power cable to connect components in complete system
- Emergency and evacuation lamps:
| Manufacturer | ASM |
| IP standard | IP20 |
