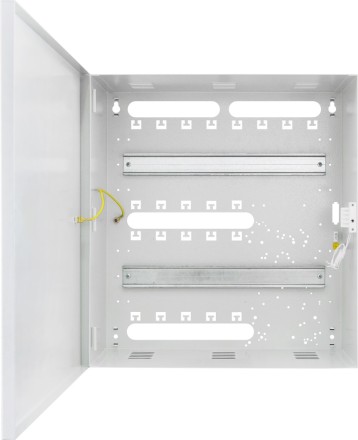

Pulsar AWO612
Surface mounted DIN 2/155 enclosure
Due to its construction, housing can be used as an element integrating electrical installations, automation systems, CCTV, Access Control, Intrusion Detection System etc. It is dedicated for DIN rail mounted devices (TH35mm).
- Dimensions of battery space - 2 x 7Ah / 2 x 17Ah
- Dimensions - 375 x 410 x 151 [+/-2 mm] distance from surface: 14 mm
- Protections - tamper – opening of enclosure possibility of mounting tamper switch PKAZ067 detects detachment from the wall
- Closing - bolted (lock assembly possible)
- DIN rail - 2 x 320mm, "S": 18 pcs
- Installation - surface-mounted
- Material - steel DC01, 1mm, RAL7035 (grey), metallic IP protection class - IP 20
More information and user manuals can be found in the "Downloads" section.
