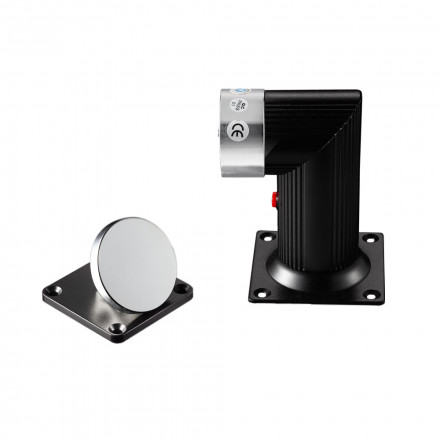

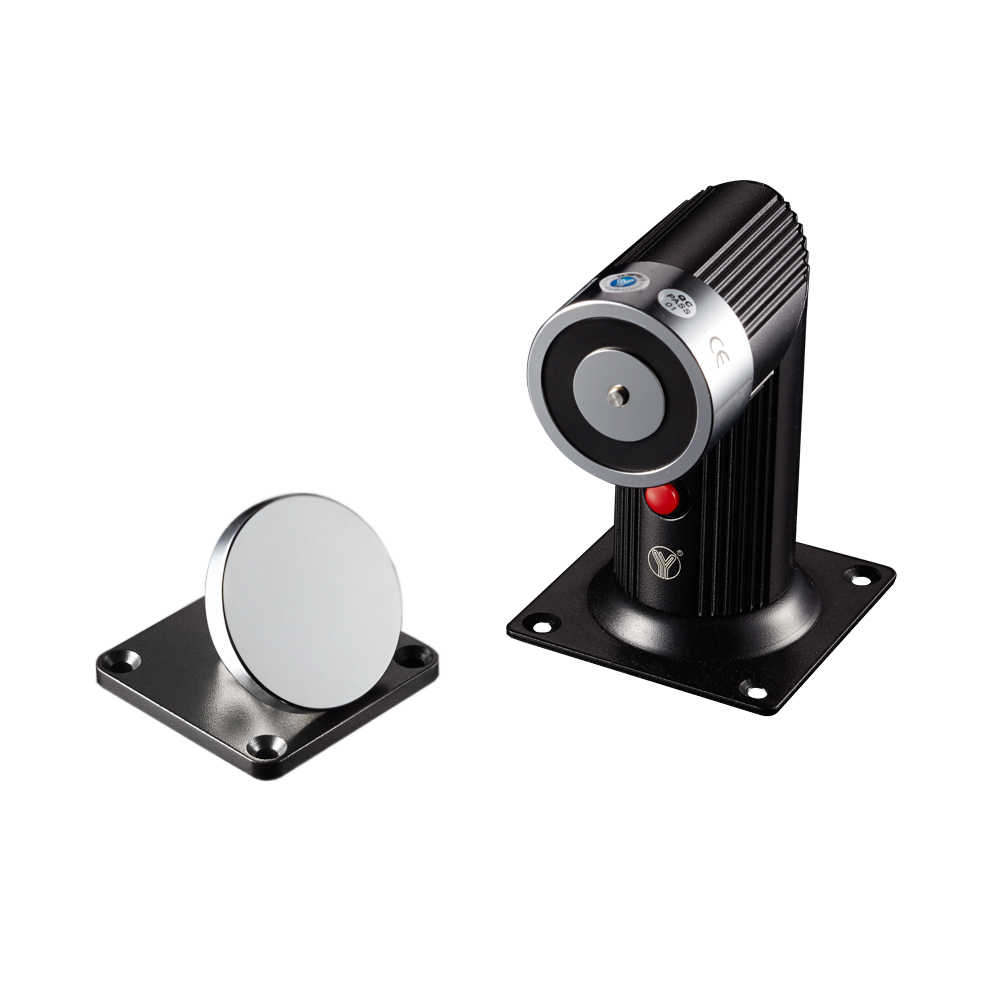

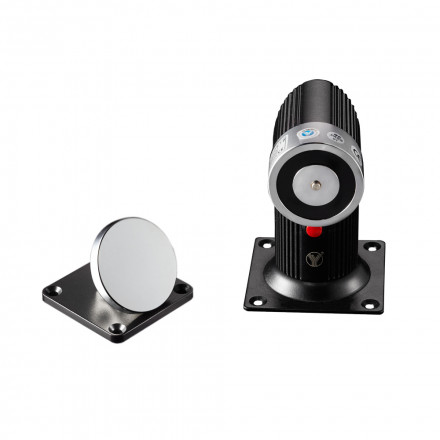

YD-606 is a floor mount door holder. The feature of low power consumption, that makes it more environment friendly and more durable. It contains build-out release button for testing and build-in MOV
- Col linear Load: 50kg, 110pounds.
- The Standard Voltage is 24VDC when finished.
- MOV Provides Reverse Current Protection.
- Low Power Consumption, Environmental Protection.
- Anti-Residual Magnetism Design.
- Professional Design, Dual Insulate Housing.
- Automatically close the smoke proof door when fire happens.
- Manual door release button.
Product Parameter | Parameter Description |
Dimensions | L80xW80xH120(mm) |
Holding Force | 50kg (110Lbs) |
Voltage | DC24V+10%（Adjustment） |
Current Draw | 12V/140mA 24V/70mA |
Optional | The Hand Moves and Closes the Door to Release the Button |
Suitable for | All Kind of the Single & Double Smokeproof Door |
Surface Temp | ≤+20℃ |
Operating Temp | -10～+55℃(14-131F) |
Suitable Humidity | 0~90%(non-comdensing) |
Finishes for Shell | High Temperature Paint and Environmental Protection |
Finishes for Armature | Zinc |
Weight | 1.05kg |
| Manufacturer | YLI |
