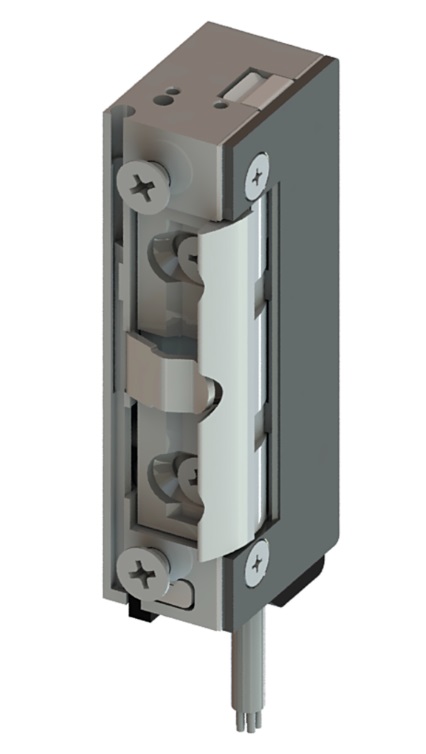

EFF-EFF 118WR---A71
Model with monitoring contact, actuated by the latch bolt.
Overview of Advantages:
- Water-proof for use outdoors
- Protection rating IP54 for the electrical components
- Connecting cable 300 mm length
- Equipped with bipolar protective diodes
- Radius keeper, FaFix®, adjustable by 3 mm
- Compatible with current mortise locks
- Striking plates with 2 position settings available
- Symmetrical design. DIN left/right as well as horizontal applicable
Specifications:
- DIN-direction Universal
- 10-24 V AC/DC
- Adjustable keeper (FF, FaFix®) Yes
- Monitoring contact (RR) Yes
- Fail-locked Yes
- Bi-directional diode Yes
- Continuous duty 11-13 V DC
- Monitoring contact switching current 250 mA AC/DC
- Current consumption 12 V AC 250 mA
- Current consumption 12 V DC 280 mA
- Current consumption 24 V AC 500 mA
- Current consumption 24 V DC 560 mA
- Break-in resistance 3750 N
- Operating temperature range -40 °C to +50 ºC
- Load cycles for in-plant test 250000
More information and user manuals can be found in the "Downloads" section.
