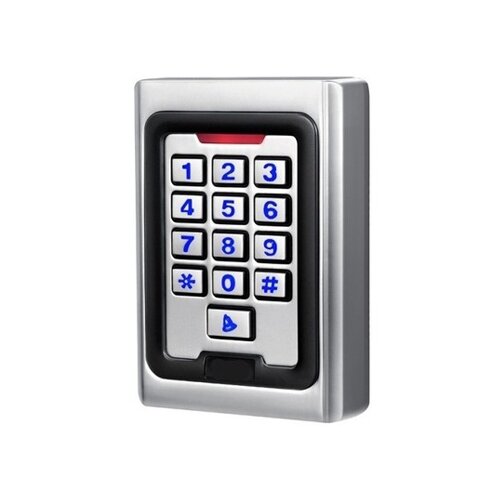

SSC S125K2 two-door controller with keyboard and card reader, outdoor, 125kHz, IP68
Technical parameters:
- Operating modes: Reader; Controller / Reader for 1 or 2 doors; Anti-passback
- Operating voltage: AC / DC 12V ± 10%
- Number of users: 2000
- Card type: EM 125khz
- Card reading distance: 2-5 cm
- Operating temperature: -45 ~ 60 C
- Wiegand interface: Wiegand 26-37 bits
- Wired connection: Electric Lock, Exit Button, Door contact, External Alarm & Reader, Bell
- Electric lock power: 1A
- Alarm power: 1A
- Call output power: 1A
- Dimensions: L120 x W58x H20 mm
| Credential Type | 125kHz |
| IP standard | IP68 |
