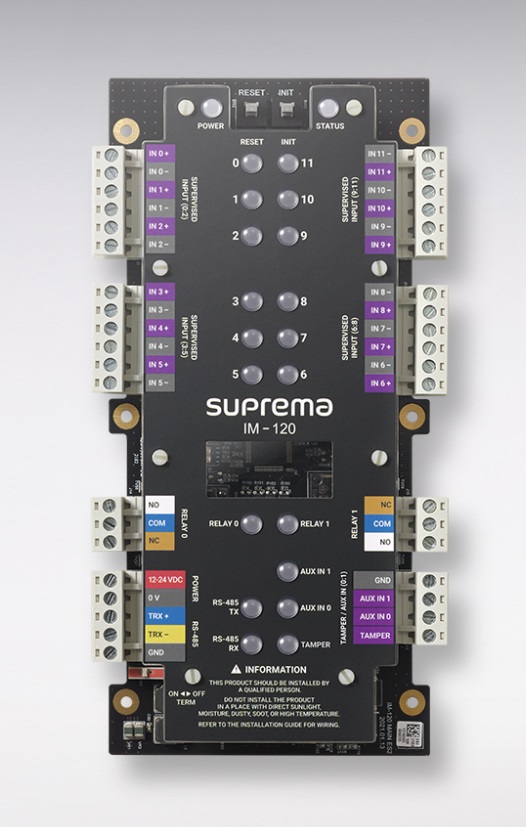

Suprema IM-120 12 Inputs Extension Control Module

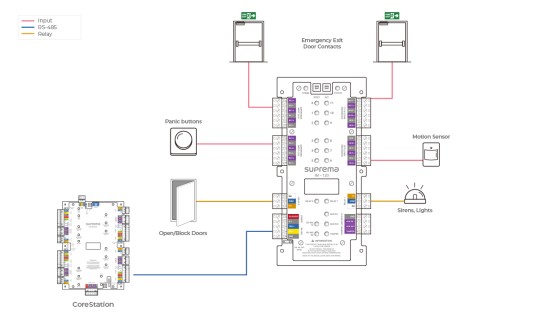

Input Module is a multiple input extension module which can control up to 12 supervised inputs, 2 AUX, 1 temper switch and 2 relays. A total of 31 units can be connected to a master device via an RS485 daisy chain. It allows the use of inputs for interfacing with sensors or door contacts etc., as well as providing a simple ‘dry contact’ interface for other systems.
Multiple inputs configured to multiple relays
12 supervised inputs configurable linkages for M:N
Offline Operation
When Input Module goes offline from its master device, the linkages between inputs and relays will still function.
While offline, Input Module can still store up to 10 logs, which can be useful for troubleshooting.
Auxiliary & Tamper input
Input Module also supports 3 AUX inputs, including 1 dedicated for tamper switch input to detect power failure or networking status (on/off) with the master device.
- Model IM-120
- CPU Cortex M3 72 MHz
- Memory 512 KB Flash + 64 KB SRAM
- Operating Temperature -20 °C ~ 60 °C
- Operating Humidity 0 % ~ 95 %, non-condensing
- Dimension (W x H x D) 90 x 190 x 21 (mm)
- Certificates CE, UKCA, KC, FCC, RCM, RoHS, REACH, WEEE
- Supervised Input 12 ch (TTL Input selectable)
- RS-485 1 ch
- Relay 2 relays
- AUX Input 2 ch (AC POWER FAIL)
- Tamper Input 1 ch
- Capacity Text Log 10 ea per port1)
- Power: • Voltage: 12 Vdc • Current: Max. 0.2 A • Voltage: 24 Vdc • Current: Max. 0.1 A
- Switch Input VIH Max.: 5 V (Dry Contact)
- Relay 5 A @ 30 VDC Resistive load
