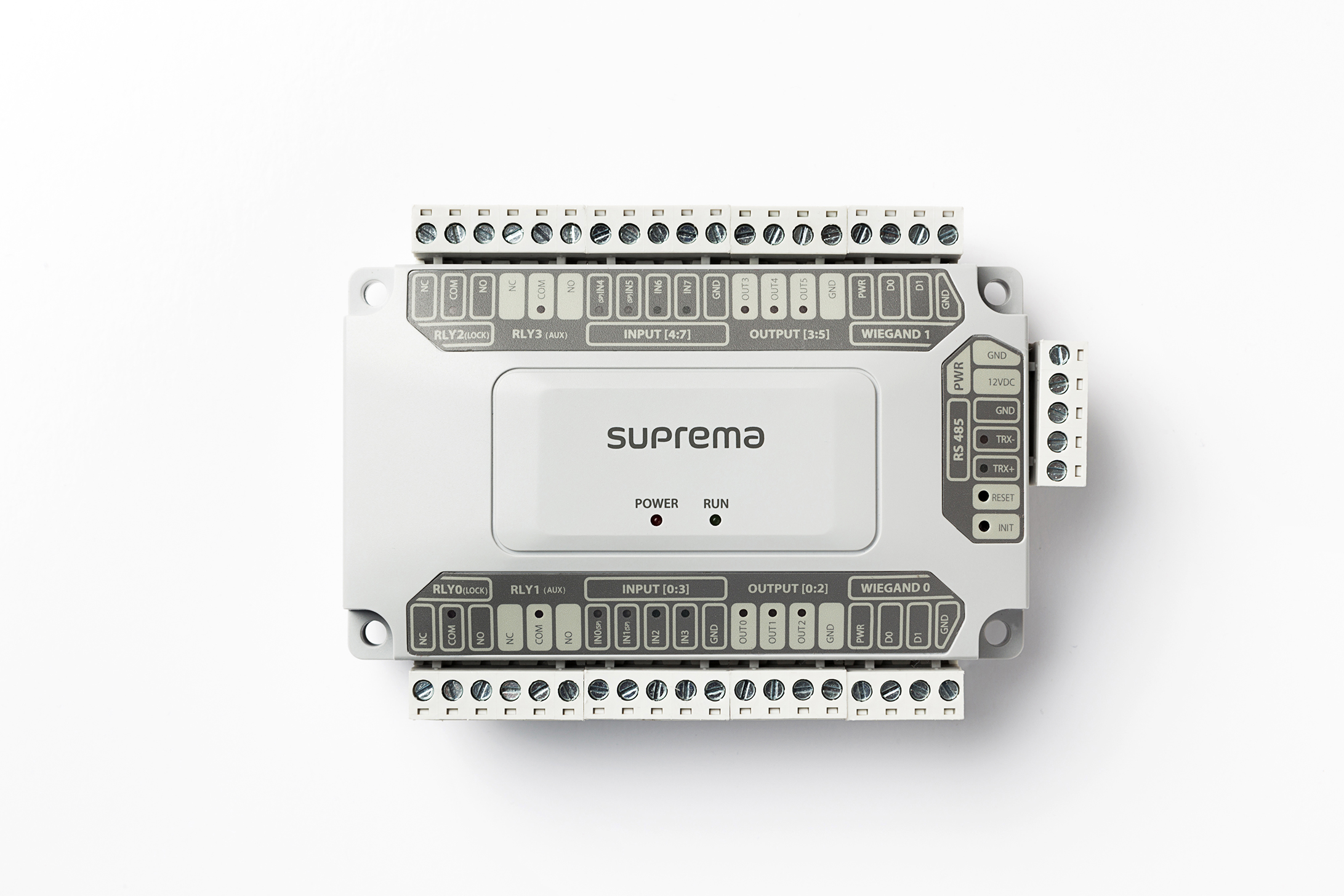

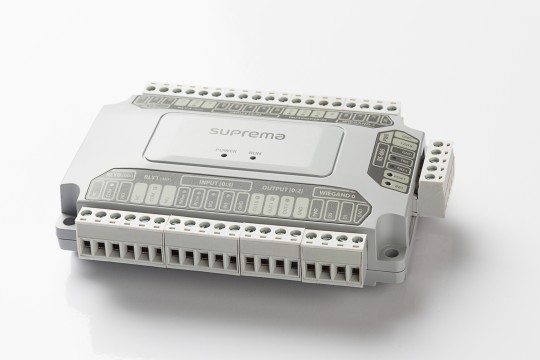

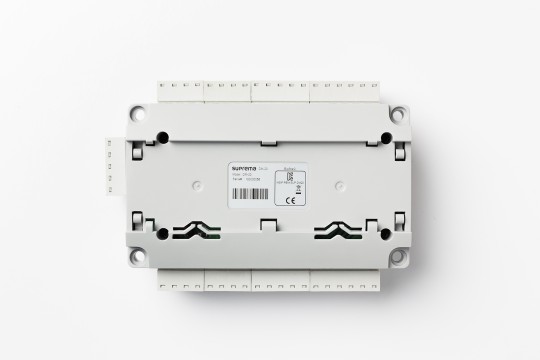

Suprema DM-20 Door Module
Door Module provides secure door control of up to four doors via encrypted communication and also contains two wiegand reader interfaces for use with 3rd party readers. A wide variety of I/O interfaces allows Door Module to be a part of diverse system configurations.
Key Highlights:
- Control up to four doors through multiple inputs and output modules
- Easily monitor device status with 4 additional supervised inputs
- Secure data transmission with encrypted communication

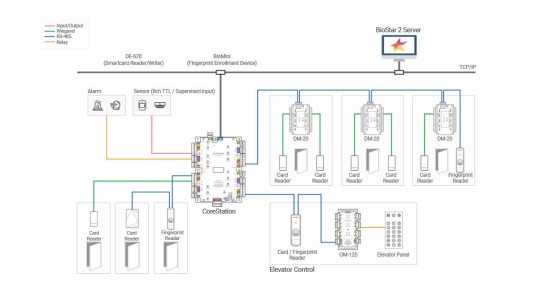

- Implement centralized access control with a Suprema device
- Model DM-20
- CPU Cortex M3 72 MHz
- Memory 128 KB Flash, 20 KB SRAM
- Operating Temperature -20 °C ~ 60 °C
- Operating Humidity 0 % ~ 80 %, non-condensing
- Dimension (W x H x D) 130 x 90.5 x 35.8 (mm)
- Certificates CE, UKCA, KC, FCC, RoHS, REACH, WEEE
- RS-485 1 ch
- RS-485 Communication Protocol OSDP V2 compliant
- TTL Input 4 ch
- TTL Output 6 ch
- Supervised Input 4 ch
- Relay 4 Relays
- Wiegand 2 ch Inputs: • Voltage: 12 Vdc • Current: Max. 1.5 A
- Power: • Voltage: 12 Vdc • Current: Max. 3.1 A
- Relay 2 A @ 30 VDC Resistive load, 1 A @ 30 VDC Inductive load
| Manufacturer | SUPREMA |
Home delivery (recommended)
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
