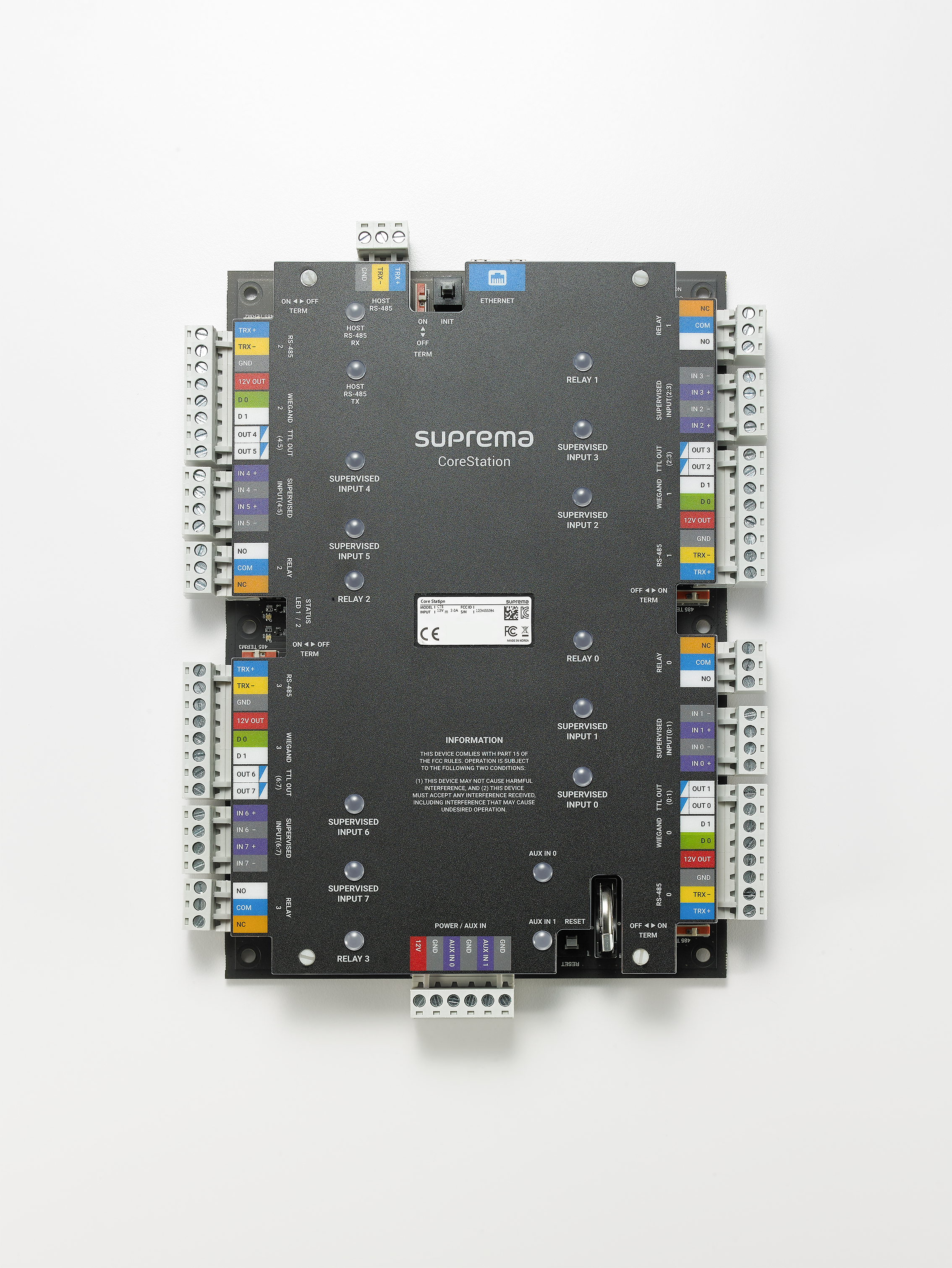

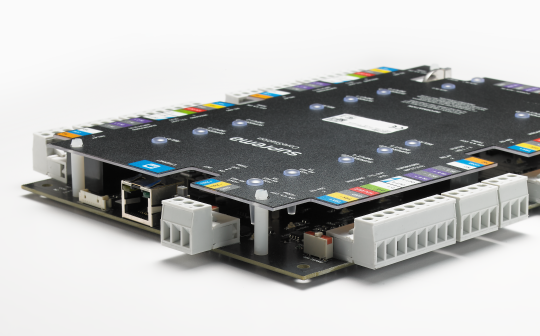

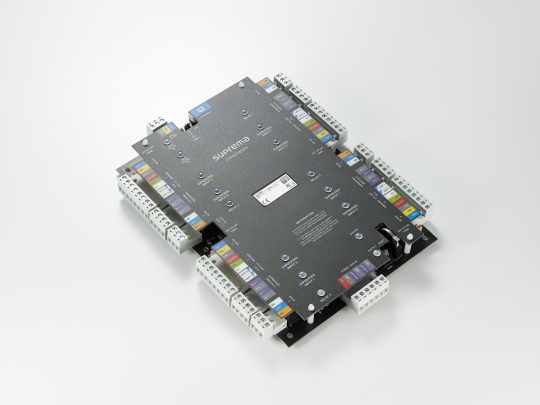

CS-40 Core Station 4 Doors Controller
Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed up to enterprise-level systems, the CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With the provisions of high-performance, biometric readiness, Ethernet communication, CoreStation is capable of offering the full features of the BioStar2 platform.
Main Features:
- Users: 500,000
- Number of fingers per user: 10
- CPU: 1.4 GHz Octa Core
- Memory: 8GB Flash + 1GB RAM
- Security: Optional (ENCR-10)
- Ethernet: 10/100 Mbps, auto MDI / MDI-X
- RS-485: 5 Channels OSDP V2 Compliant
- Wiegand: 4 Channels
- Relays: 4
- TTL output: 8 ch (TTL input selectable)
- AUX input: 2 ch (AC POWER FAIL, TAMPER)
- Maximum RS-485 slave devices: 64 (Max. 31 per port)
- Maximum Wiegand Devices: 132 (with DM-20)
- Certifications: CE, KC, RoHS, REACH, WEEE
More information and user manuals can be found in the "Downloads" section.
