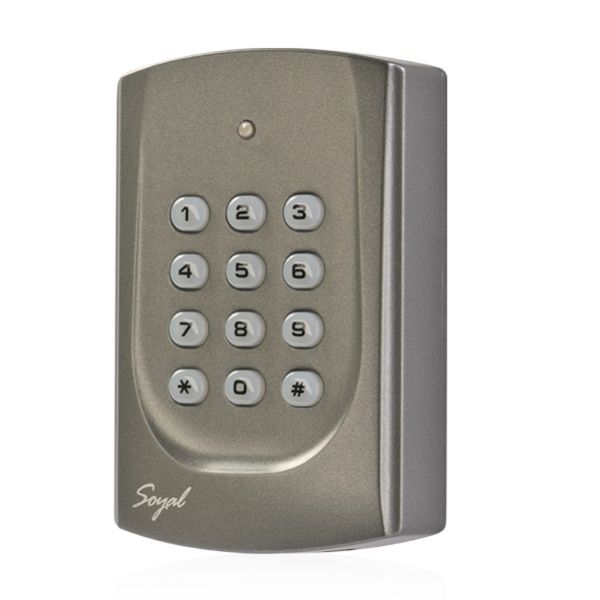

Door controller with remote card reader with keypad;
Can operate autonomously or connect to a network.
Activation method - card, card and PIN, card or PIN;
125 kHz (can be ordered 13.56Mhz ISO15693, DESFire, PSAM, NFC);
Power supply DC 9-16V;
Power consumption <3W;
RS-485 ports;
Port for additional connection of a Wiegand 26/34 format scanner;
Card scanning distance 10 - 18 cm .;
Operating temperature -20 ° C ~ + 60 ° C;
Exit button connection;
Door position sensor connection;
Relay door opening output (NO, NC), DC 24V 1A;
Door opening time 0-600 sec.
Alarm time 0-600 sec.
Tamper switch (NO, NC), DC 24V / AC 125V 1A;
Sound indicator;
Two-color LED indicator;
65,000 users in offline mode (M6)
1024 users, offline, connected to the network, logging events (M4, M8)
1200 event memory;
Elevator control (32 floors, 1024 users);
Dimensions: 111 x 77 x 26 mm.
| Manufacturer | SOYAL |
| In stock | Yes |
| Credential Type | 125kHz |
You will get an e-mail with parcel ID, once the goods are sent out
| up to 5 kg | 3,99 € | up to 10 kg | 5,00 € |
| up to 30 kg | 9,00 € | up to 75 kg | 15,00 € |
| up to 200 kg | 70,00 € | up to 1000 kg | 200,00 € |
