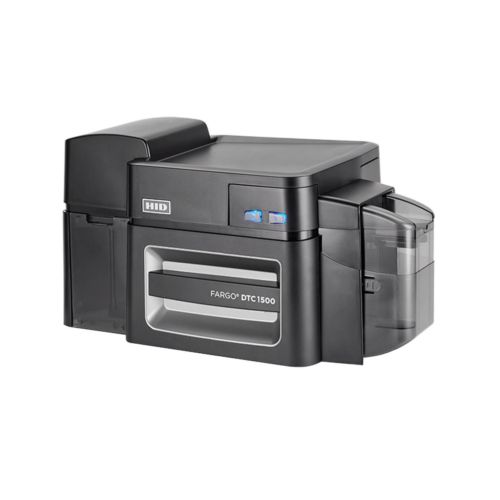

The DTC1500 offers the convenience and lower
cost of high-capacity consumables along with a comprehensive feature
set and innovative, easy-toimplement security elements — enabling
organizations to routinely issue highly secure cards and IDs at a
fraction of the cost without sacrificing quality. Designed for
government, universities and colleges, K-12 schools, healthcare
facilities, and small-to-medium corporations, the DTC1500 boasts
distinctive security features. A built-in custom watermark overlay
function allows for the application of a customized transparent security
image — such as a logo, symbol or text — to be integrated as a
permanent watermark within the printed card’s overlay panel, making
duplication virtually impossible. The DTC1500 custom watermark provides
organizations with a cost-efficient way to significantly increase card
security and thwart wouldbe-counterfeiters without additional investment
in holographic overlaminates or foil cards. The DTC1500 also comes
equipped with a unique resin scramble data protection feature, providing
an additional layer of security by hiding any information printed with a
resin panel. Standard password protection and AES 256 data encryption
provide additional peace of mind. Beyond robust security, the DTC1500
offers innovative printing features such as resin threshold. Resin
threshold allows for true K panel printing by allowing printer operators
to manually set and adjust precisely when the resin is utilized based
on color concentration. As a result, text and barcodes are darker and
more crisply defined. What’s more, built-in dual-side printing can be
activated by simply using an RFID tag, making after-purchase upgrades
virtually effortless. Due to its modular, scalable design, optional
lamination or encoding modules can also be added at any time. Security,
lower cost, innovation and versatility — they all come standard with the
DTC1500.
| Print Method | Dye sublimation / resin thermal transfer |
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | Wide
array of eco-friendly, high-capacity print ribbons from K to YMCKOKO.
Laminate patch options from full card coverage and half panel polyester overlaminates to off-the-shelf and fully custom holographic overlaminates are all available from HID. Available print ribbons include: Full-color with resin black and overlay panel, YMCKO*, 500 prints Full-color with two resin black panels and overlay panel, YMCKOK*, 500 prints Full-color with two resin black panels, YMCKK*, 500 prints Full-color half-panel with resin black and overlay panel, YMCKO*, 850 prints Full-color half-panel with two resin black panels and overlay panel, YMCKOK*, 650 prints Full-color half-panel with two resin black panels and overlay panels, YMCKOKO*, 500 prints Resin black, K*, 3000 prints |
| Print Speed** | 6 seconds per card (K*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*) |
| Accepted Standard Card Sizes | CR-80 (3.375˝L x 2.125˝W / 85.6 mm L x 54 mm W); CR-79 (3.313" L x 2.063" W / 84.1 mm L x 52.4 mm W) |
| Print Area | CR-80 edge-to-edge (3.36˝L x 2.11˝W / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W) |
| Accepted Card Thickness | .009˝ - .040˝ / 9 mil - 40 mil / .229 mm - 1.016 mm |
| Accepted Card Types | PVC or polyester cards with polished PVC finish; 100% polyester cards (monochrome resin required); rewrite |
| Input Hopper Card Capacity | 100 cards (.030˝ / .762 mm) |
| Output Hopper Card Capacity | Up to 100 cards. (.030" / .762 mm) |
| Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Memory | 32 MB RAM |
| Software Drivers | Windows® 7, 8, 8.1 and 10 (32 bit & 64 bit) / Windows Server 2003, 2008, 2012 / Linux**** |
| Interface | USB 2.0, Standard Ethernet with internal print server (Ethernet is optional on BIS-certified units) |
| Operating Temperature | 65° to 80° F / 18° to 27° C |
| Humidity | 20–80% non-condensing |
| Dimensions | Printer: 9.8" H x 18.7" W x 9.2" D / 249 mm H x 475 mm W x 234 mm D Printer + lam: 18.9" H x 18.7" W x 9.2" D / 480 mm H x 475 mm W x 234 mm D |
| Weight | Printer: 11 lbs. / 5 Kg Printer + lam: 20 lbs. / 9.1 Kg |
| Agency Listings | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC |
| Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
| Supply Frequency | 50 Hz / 60 Hz |
| Environmental Features | GreenCircle
Certified card printer (base models only without encoders), refillable
supply cartridges (ECO), and rewrite technology - no ribbon required |
| Warranty | Printer: three years***; printhead: three years***, unlimited card passes with UltraCard™ |
| Encoding Options (HID Encoders) | Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS Standard / SE / SR / Seos, MIFARE Classic, MIFARE Plus, MIFARE DESFire, MIFARE DESFire EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 |
| Options | Single-wire
Ethernet and USB 2.0 interface for inline printing and encoding are
only optional on BIS-certified units (note: single-wire Ethernet encoding is only available for iCLASS, MIFARE, and contact smart card encoding.) Ethernet-enabled printer supports wireless accessory; dual-sided printing module; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; secure proprietary consumables system; Third-party encoder installation kit for FeliCa™, Calypso, LEGIC® |
| Software | FARGO Workbench diagnostic utility with Color Assist spot-color matching |
| Display | Color-changing status buttons |
| Manufacturer | HID |
