Vaizdo stebėjimo sistemos

IP vaizdo stebėjimas

IP kameros

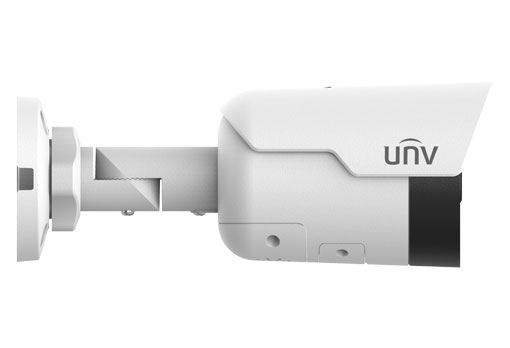

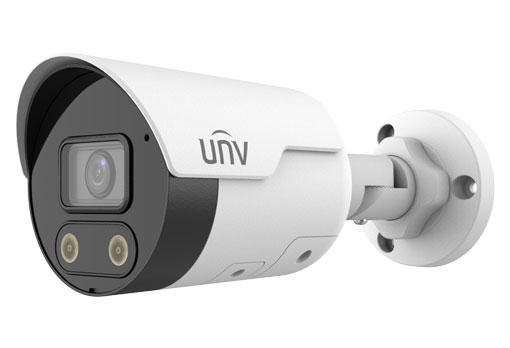

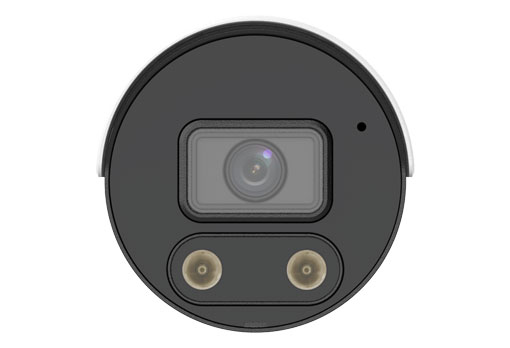

IPC2124LE-ADF28KMC-WL, 4Mpix Colorhunter apvali BULLET IP kamera, 2,8mm (~112,9°), smart IR iki 30m , IP67, PoE

IPC2124LE-ADF28KMC-WL, 4Mpix Colorhunter apvali BULLET IP kamera, 2,8mm (~112,9°), smart IR iki 30m
, IP67, PoE

Pridėti prie mėgstamų sąrašo.

Spausdinti prekės puslapį

Kaina:	132,00 €
Kodas:	0-0411-086-000750
Gamintojas:	UNIVIEW UNIVIEW
Kategorija	IP kameros

Likutis senka, užsisakykite skubiai!

Kiekis:

Kiekis:

- +

• Aukštos kokybės vaizdas su 4MP, 1/3" CMOS jutikliu

• 4 MP (2688*1520) @ 25/20 kadrų per sekundę; 4 MP (2560*1440) @ 25/20 kadrų per sekundę; 3 MP (2304*1296) @ 30/25 kadrų per sekundę; 2 MP (1920*1080) @ 30/25 kadrų per sekundę;

• Ultra 265, H.265, H.264, MJPEG

• 120 dB tikroji WDR technologija užtikrina aiškų vaizdą esant stipriam apšvietimui

• Palaiko 9:16 koridoriaus režimą

• Integruotas mikrofonas ir garsiakalbis

• Išmanusis IR, iki 30 m (98 pėdų) IR atstumas

• Balta šviesa, iki 30 m (98 pėdų) baltos šviesos atstumas

• Palaiko 128 G Micro SD kortelę

• IP67 apsauga

• Palaikykite PoE maitinimo šaltinį DC12V

• 3 ašių

Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	>52dB
WDR	120dB
Lens
Lens Type	2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount	M12
Field of View (H)	112.9°			91.2°
Field of View (V)	59.1°			47.9°
Field of View (D)	121.2°			95.9°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
	2.8	63.0	25.2		12.6	6.3
	4.0	90.0	36.0		18.0	9.0
Illuminator
IR Range	Up to 30m (98ft) IR range
White Light Range	Up to 30m (98ft) white light range
Wavelength	IR：850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 25fps;4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Supported
9:16 Corridor Mode	Supported
	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Defog	Digital Defog
Events
Basic Detection	Cross line, intrusion(based on human body detection)
	motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 128GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network	1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 9.0W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions(L × W × H)	191×75×74mm (7.5”×2.9”×2.9”)
Weight	0.41kg (0.90lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV

Pilnas Uniview įrangos katalogas (anglų k.)

Kameros vartotojo instrukcija (anglų k.)

Montavimo priedai

Gamintojas	UNIVIEW
Spec. funkcijos	Colorhunter
Sandėlyje	Yra
Apsaugos Lygis	IP67
Raiška	4Mpix
Korpuso tipas	Bullet
Maitinimas	12V DC / PoE 802.3af
IR pašvietimas	30m
Objektyvas	2,8mm
Lizdas SD kortelei	128Gb
Korpuso spalva	Balta
Audio	Mikrofonas
Ryšys	LAN

Prekės Aprašymas ENG
